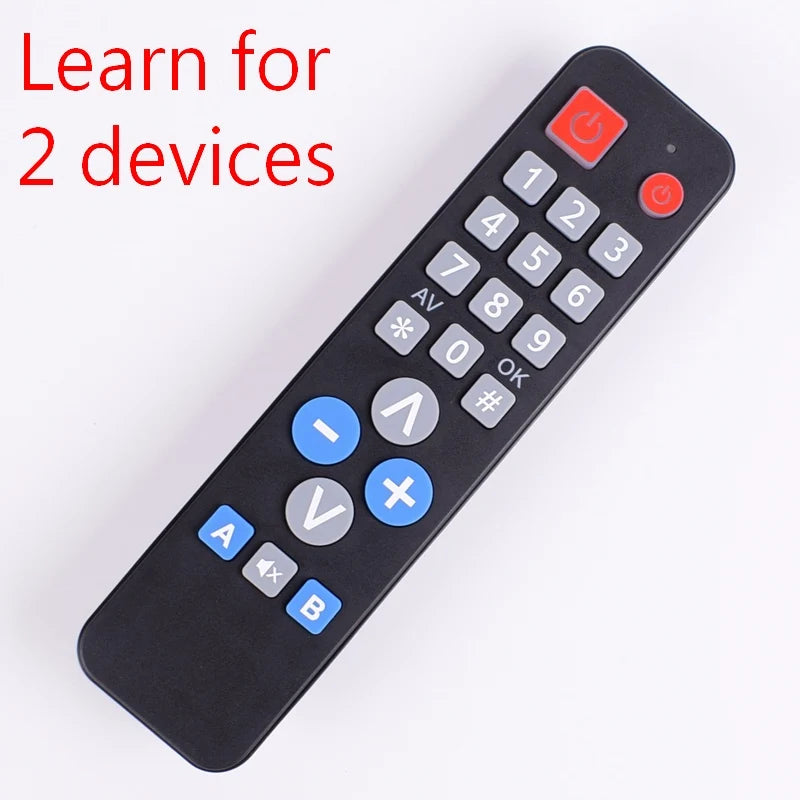

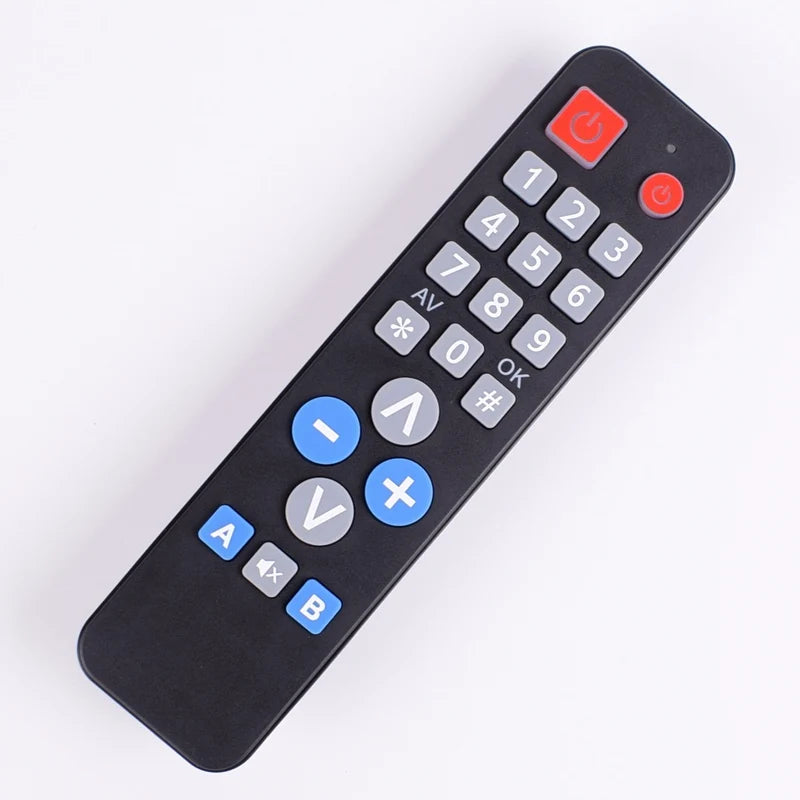

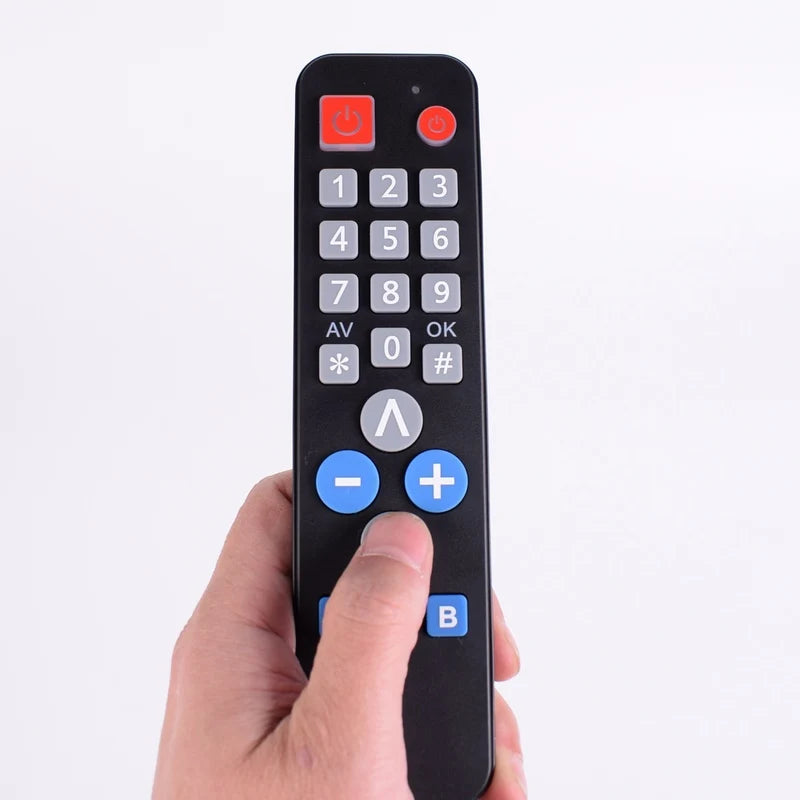

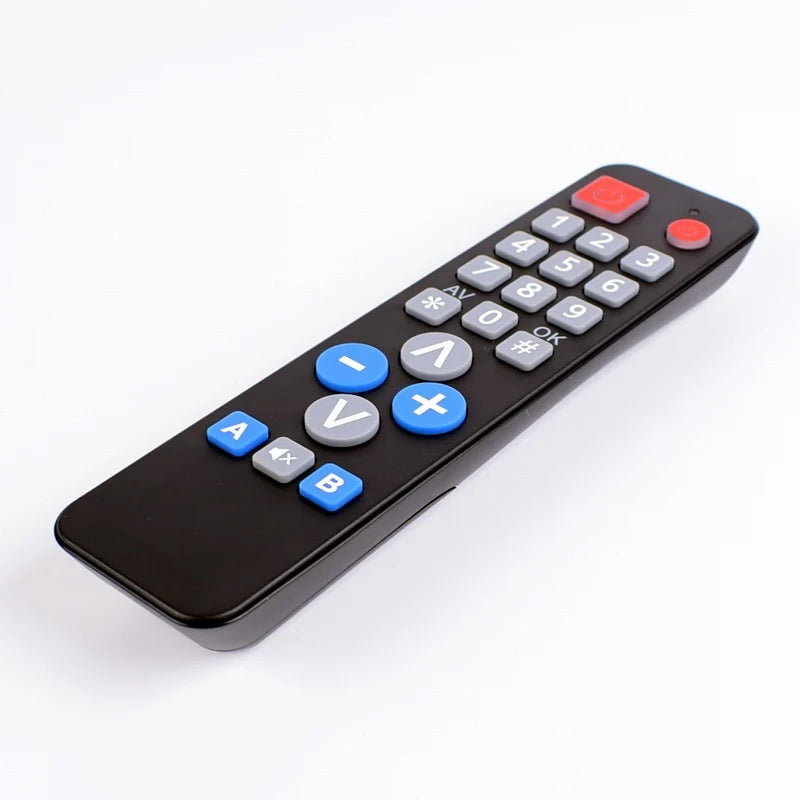

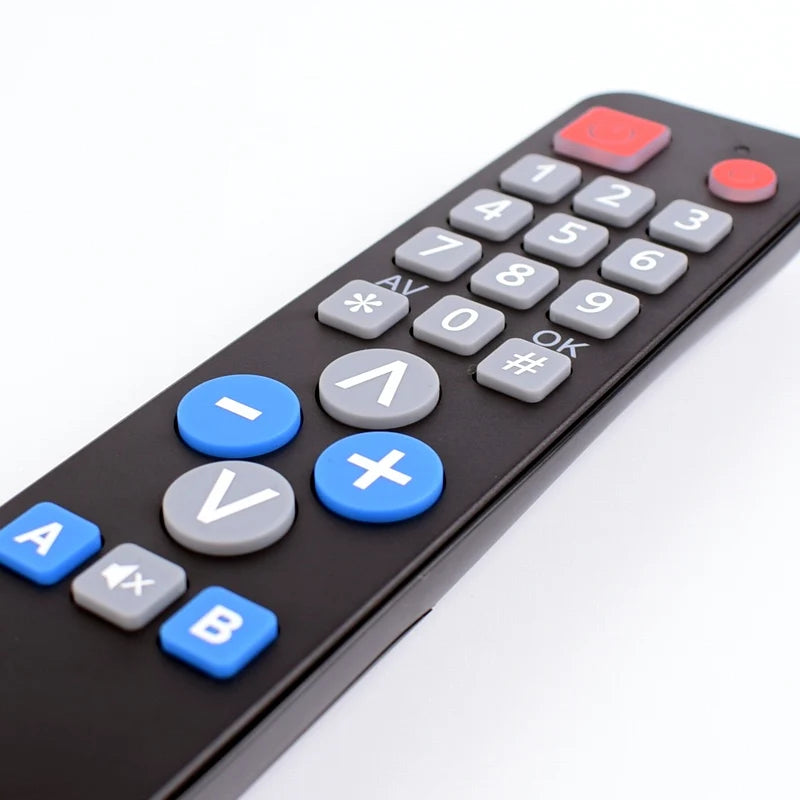

2 Pages Big buttons Learning Remote Control , works for 2 devices.
1. 21 Big buttons easy use for old people, 2 pages work for 2 devices.
2. Copy code for TV/STB/DVD/VCD/VCR/Satellite receiver/DVB/COBI
3. Brand new, 1 year warranty.
4. You must have the original remote control to teach the Learning remote.
Attention: Not For Air Conditioner . Not for blue tooth !!
Attention: If you lost your original remote control, do not buy it.
If your remote control with Mircrophone or Cursor, Cannot work.
Name |
Big buttons universal tv learning remote control easy use for old people. |
Keys number |
21keys, 19 buttons learnable. |
Warranty |
1 year |
Print and codes |
As photos |
Use for |
copy Code from IR remote control for TV/STB/DVD, then have the same function |
Launch range |
> 10 meters, |
Launch angle |
40°-45° |
Case |
Brand new |
PCB |
Brand new |
Standard |
CE/ROHS/ISO9001 |
Payment |
Online pay, alipay, paypal,credit |
Size |
185*45*22mm |
Package |
Ploy bag with manual |
Weight |
76g |
Drop test |
drop from 1 meter, no damage |
Delivery from |
China |
Handle time |
in 3 DAYS |
|
Learn remote control introduction
· A learning universal remote control with 21keys
· Easy to use , Extra large buttons.
· Each key can be programmed individually
· Requires no code number,· Easy Teach the original remote
· No data loss when changing batter
· LED indicates there is every keystroke
· total 42 individual commands can be taught, · Each time reprogrammable

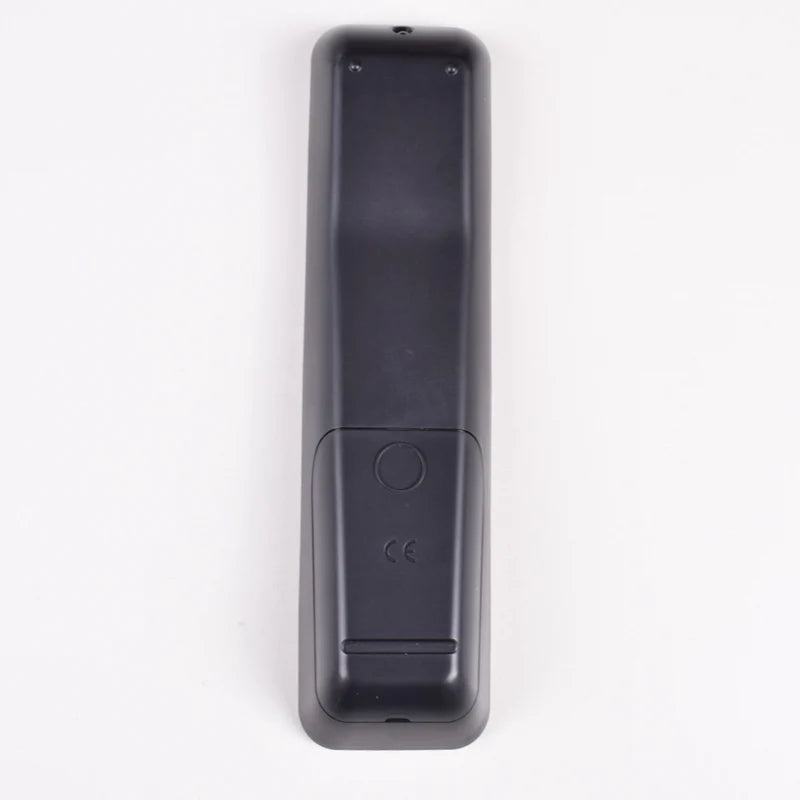

· Works with 2xAAA standard batteries ( not included)
How to setup the remote control.
Step 1.
Hold the sending end of the original remote control aiming at the receiving end of the Learning Remote control(distance of 1cm—3cm is the best).
Step 2
Press button “A “ and hold on more than 5 seconds, the LED will start blinking, the learning system is on now.
Step 3.
Press the button of learning remote control which you want to program，(for example：To learn power, press the power button, and to learn VOL, press the VOL button) until the LED stop blinking and keep lighting up, release the button.
Step 4.
Press the targeted button of the original remote control and hold about 2 seconds（To learn power, press the power button, and to learn VOL,
press the VOL button), LED will change from “keep lighting up” to “keep blinking”. Then release the button of the original remote control.
Step 5.
To learn other buttons repeat step 3 and step 4（(To learn VOL,1,2,3....) .
Step 6.
When learning is completed, press buttons “A” to exit learning state with LED off.
Step 7.
Press button “B“ and hold on more than 5 seconds, the LED will start blinking, repeat step 2 to step 5 to learn for device B.
Step 8.
After learning, Press A quickly to work for device A, press B quickly to work for device B.
|
