Tuya Zigbee 38KHz IR Remote Control Temperature Humidify Sensor Smart Wireless Universal for TV DVD AC for Alexa Google Home

$27.99 $37.99

Color For Z2M For Z2M(TH For Zigbee Tuya For Zigbee Tuya(TH

Tuya Zigbee 38KHz IR Remote Control Temperature Humidify Sensor Smart Wireless Universal for TV DVD AC for Alexa Google Home

There are 2 connection protocols:

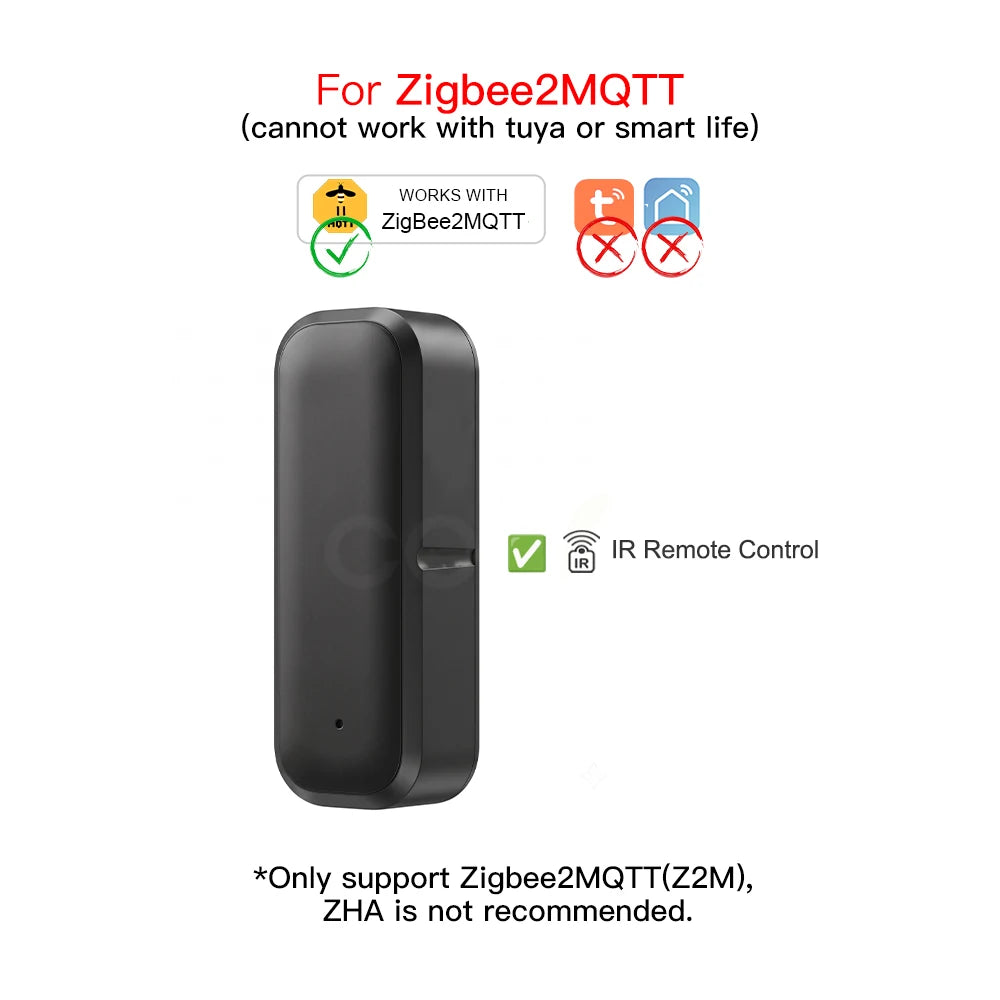

For Zigbee2mqtt(Z2M): only support Zigbee2MQTT in Home Assistant, please note Z2M not ZHA. Also cannot work with Tuya/smart life App!

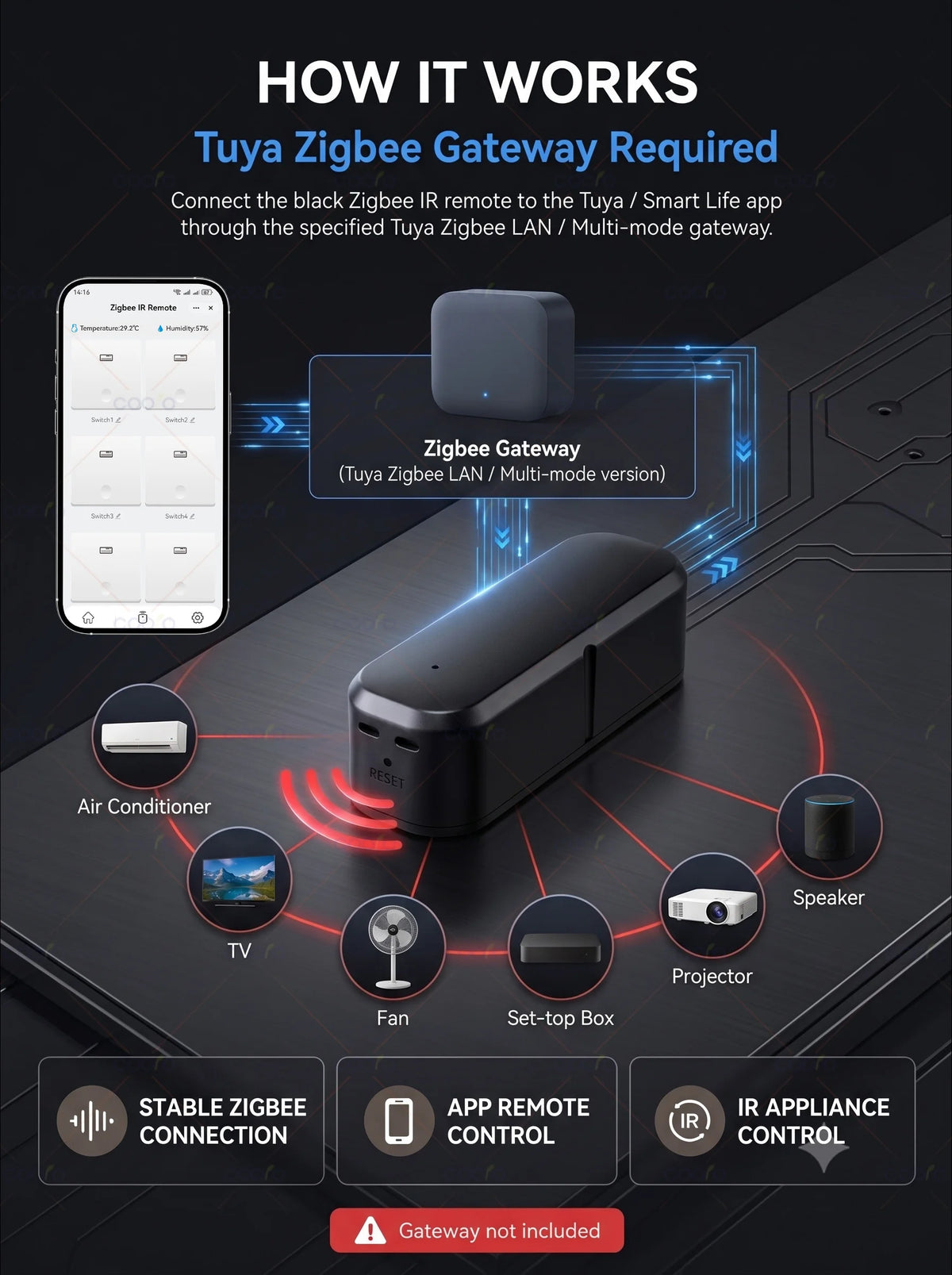

For Zigbee Tuya: Both Support Tuya/Smart Life App and Z2M, but must be use a Tuya zigbee gateway/hub, cannot work via wifi directly!

Specification

Product: Zigbee IR Remote

Operating Voltage: DC3.0V

Standby Current: <50UA
Wireless Protocol: ZigBee 3.0(need Zigbee gateway)

IR Frequency: H38KHz / 940nm

IR Control Distance: <12m

IR Radiation Angle: 360°

Temp. Accuracy: ±0.3°C

Hum. Accuracy: ±5%

Battery Type: LR03(not included)

Battery Life: >8 Months

Operating Temperature: -10 ~ 55°C

Operating Humidity: max 99%RH

Product Size: 70 × 24.5 × 20mm

App: Tuya Smart/Smart Life(cannot work via wifi directly); Z2M(zigbee2mqtt) not ZHA(zigbee home automation)

Package Content

1* Zigbee IR Remote

1* User Manual

1* Reset Pin

1* Double-sided Sticker

Important Note!

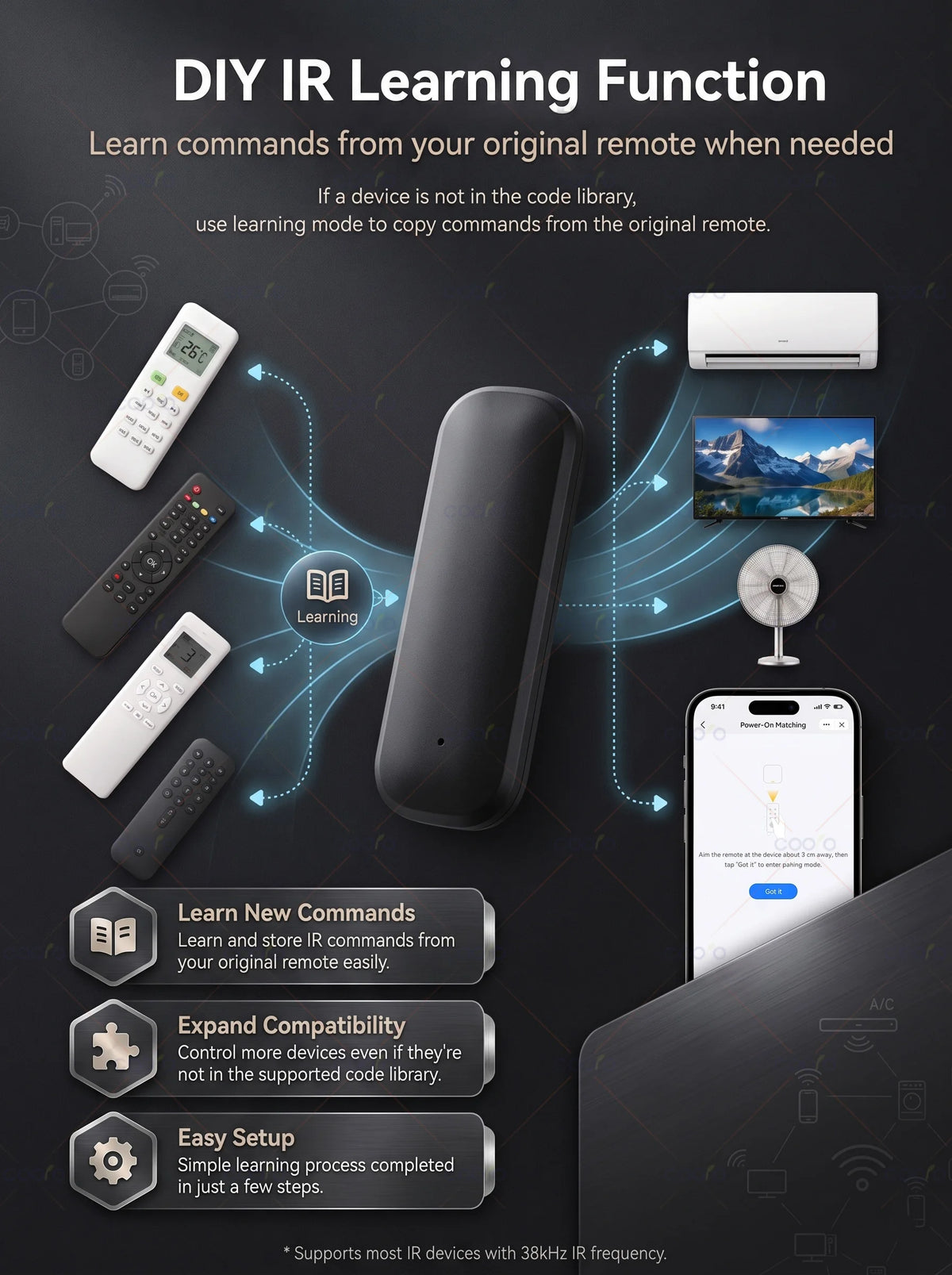

1. IR code learning is only available when the device indicator light stays solid on. If the infrared remote control works in reverse state, press the power button on the remote again within 3 seconds to relearn the code.

2. Each on/off channel must separately learn the power-on IR code and power-off IR code from the remote control.

3. The indicator flashes rapidly 3 times to indicate successful learning. After success-fullearning, relearning can be repeated within 3 seconds; After 3 seconds, the last learned IR code will be saved automatically.

FAQ:

A. IR code learning succeeded, but control is invalid?

1. Please retry IR Code learning several times.

2. It control still fails arter successtul retries, the IR remote is incompatible.

B. After clicking "Study", the LED flashes right away and the process exits automatically in 3 seconds.

1. There is 940nm infrared signal interference in the environment. Please move to another location to perform the IR learning operation.
