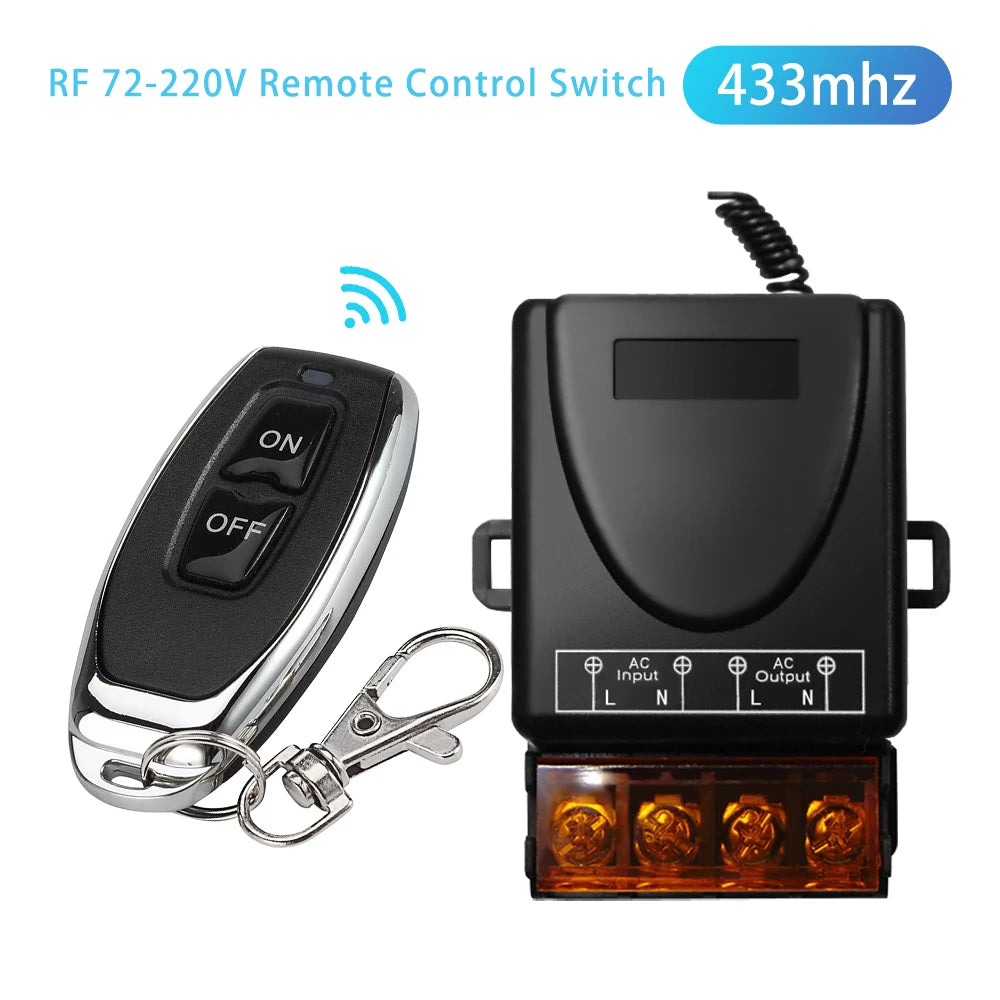

RF 433Mhz Wireless Remote Control Switch AC 72V-220V Relay Motor Water Pump Door Access System Wireless Switch Car Power

RF Wireless Remote Control Switch 433Mhz AC 72V-220V Relay for Light Lamp Water Pump Door Access System

Features

Convenient to install and easy to use.

It can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.

You can remotely operate every device connect with the relay receiver through the remote control.

It can be used in lights, pump, wireless security alarm, fan, lamp, wireless door alarm, ventilation device, monitor, printer, fountain, etc.

The wireless signal can pass through walls, floors and doors; Max range is up to 328ft with no obstacle.

Stable performance and low-power consumption, long service life.

Remote control

Operating Settings:

Working Mode:

Momentary: Relay: Press and hold -> On; Release -> Off.

Toggle: Relay: Press -> On; Press same button again -> Off·

Latched: Relay: Press -> On; Press other button -> Off.

Delay time :

Press remote control button, the corresponding relay actuates and keeps working until the time out.

How to Reset?

Long press the learning button for about 8 seconds until the indicator light flashes, succeed.

After reset, all transmitters will no longer function and need to learn again.

How to set Latched Mode?

Press the Learning Button 3 times, the Led indicator flash 3 times, then press button A, after 3 seconds then press button B, the Led indicator flash for 3 times, learning succeed.

We set Latched Mode as default mode, if you want to set other mode, please check user manual for reference.

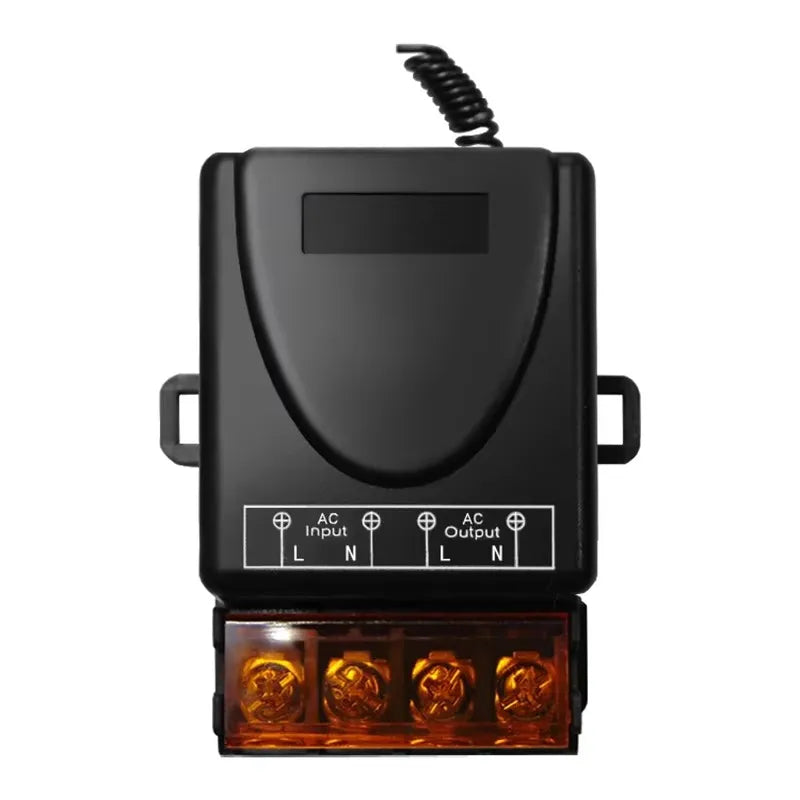

About Receiver

Operating Voltage: AC 72V-220V

Receiving Range: 328ft (Open space)

Operating Mode: Momentary/Toggle/Latched/Delay mode

RF Frequency: 433MHz

DC Encoding Type: Learning code

RF Channel: One

Transmitter Support: Max 26

Input Terminals: Live (L) and Neutral (N) electrodes

Output Terminals: Live (L) and Neutral (N) electrodes

Case Construction: ABS Plastic
