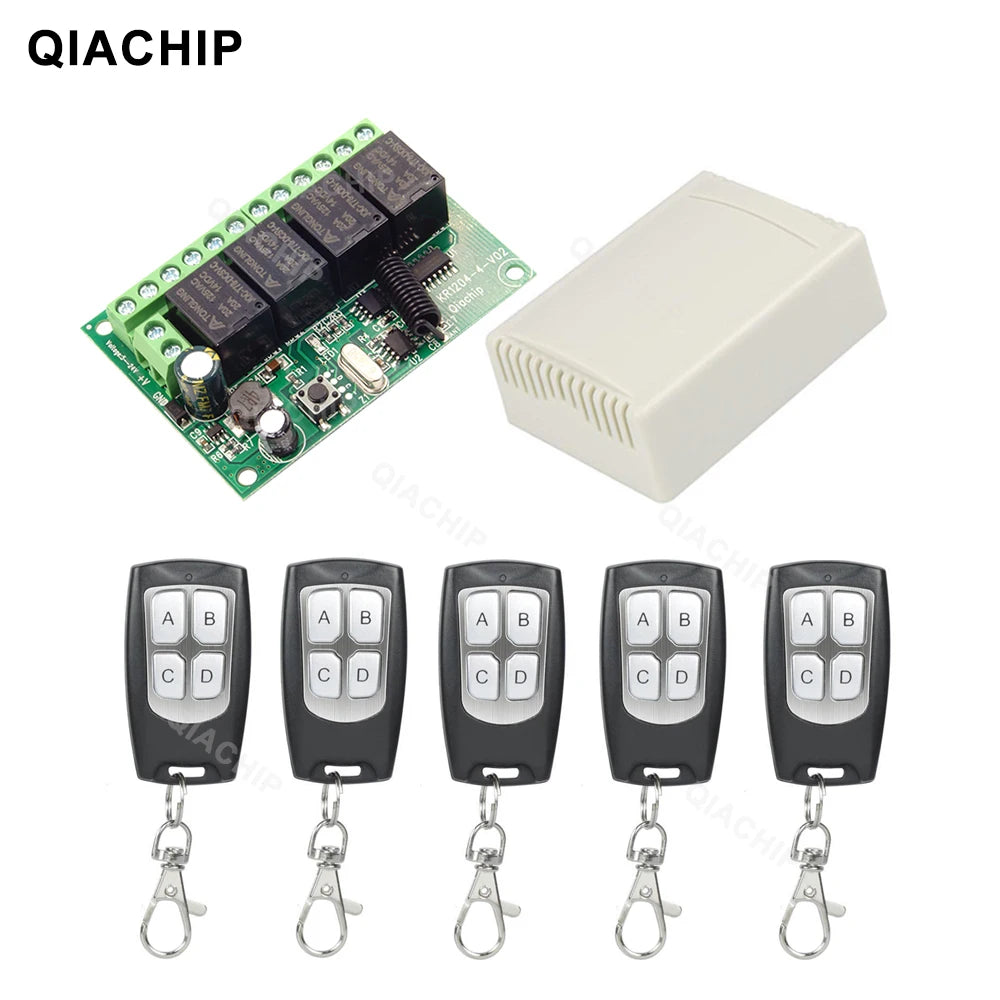

QIACHIP 433Mhz RF Remote Control Circuit Universal Wireless Switch DC 6V 12V 24V 4CH RF Relay Receiver and Keyfob Transmitter

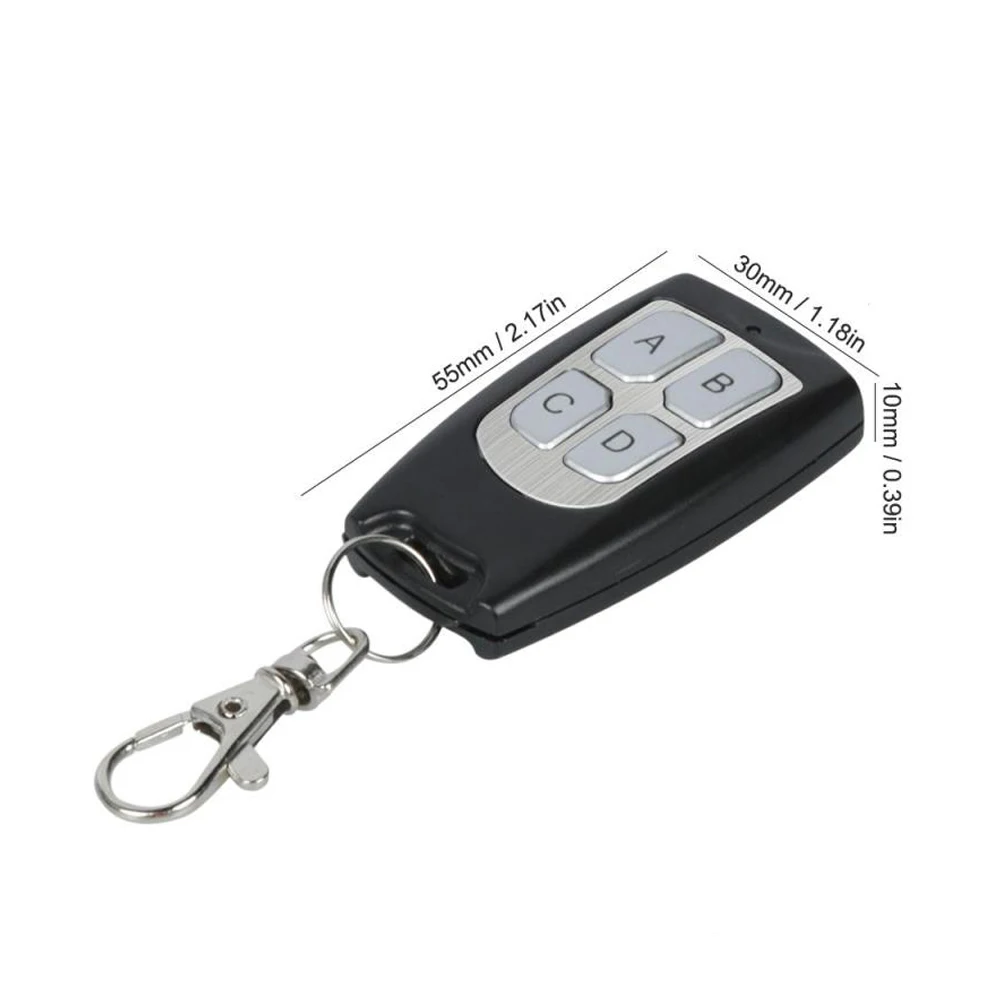

Specifications Of The Remote Control:

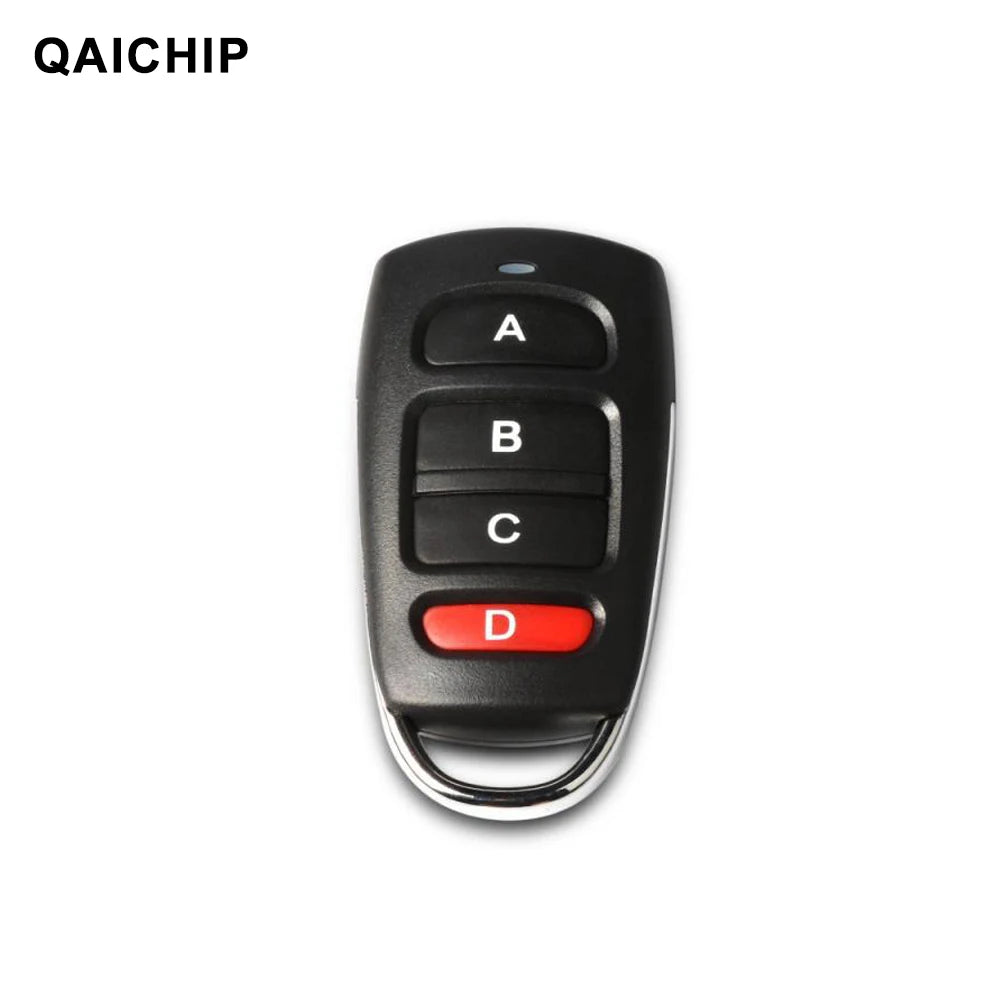

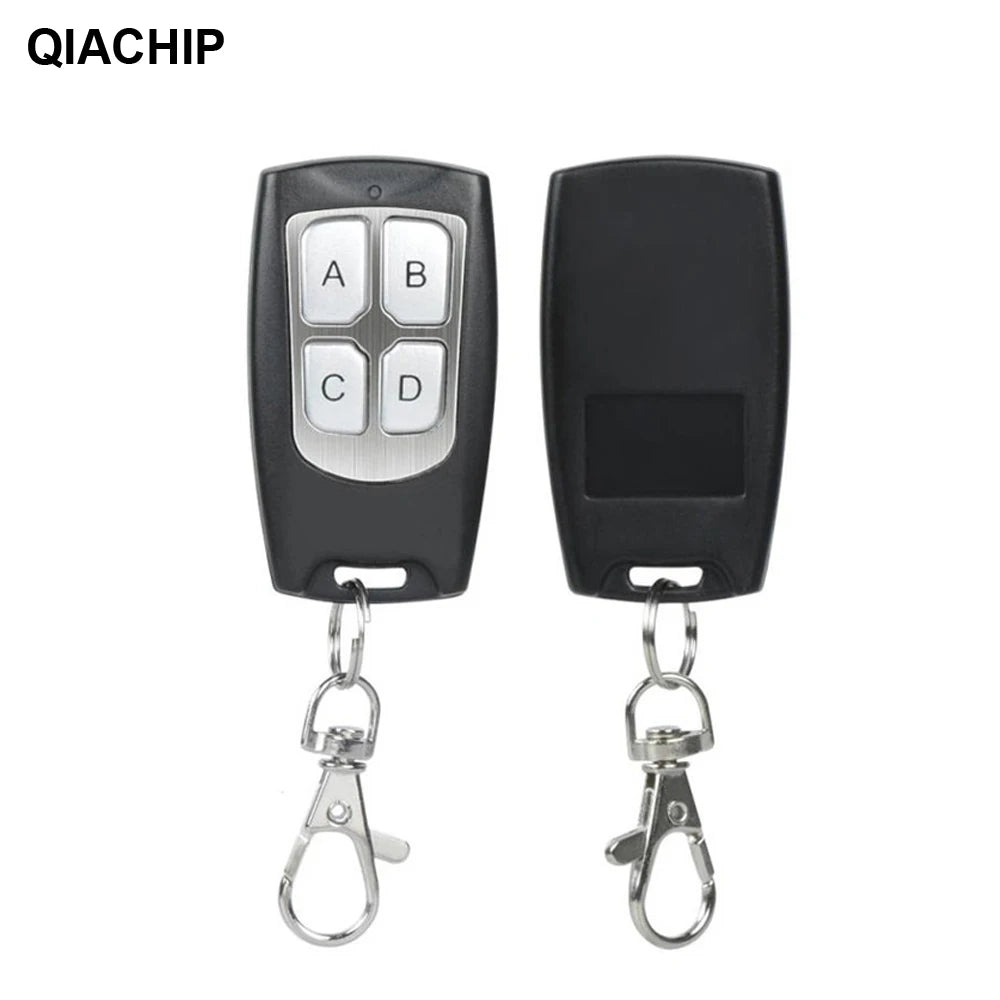

Model Number: KT19-4
Working voltage: DC3V
Working current: <25mA
Working frequency: 433MHZ
Transmitting power: +13dbm
Encoding format: 1527 encoding

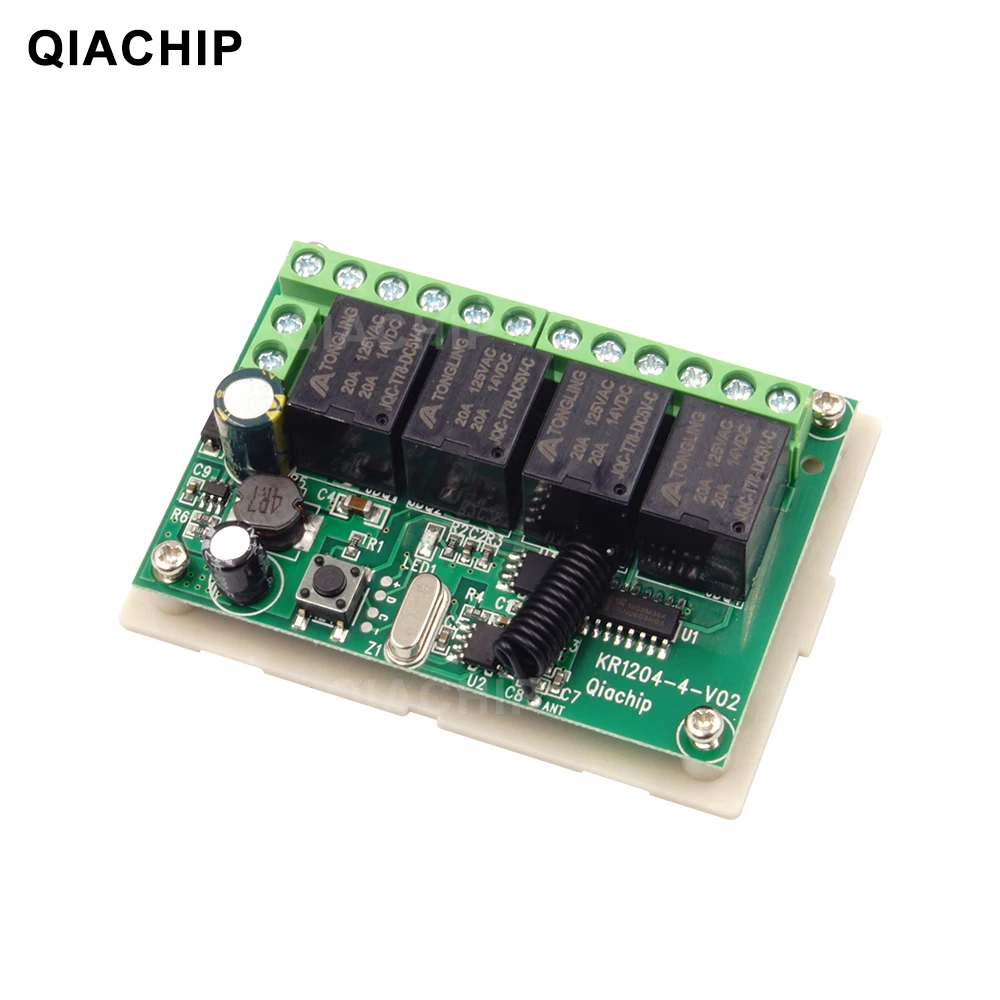

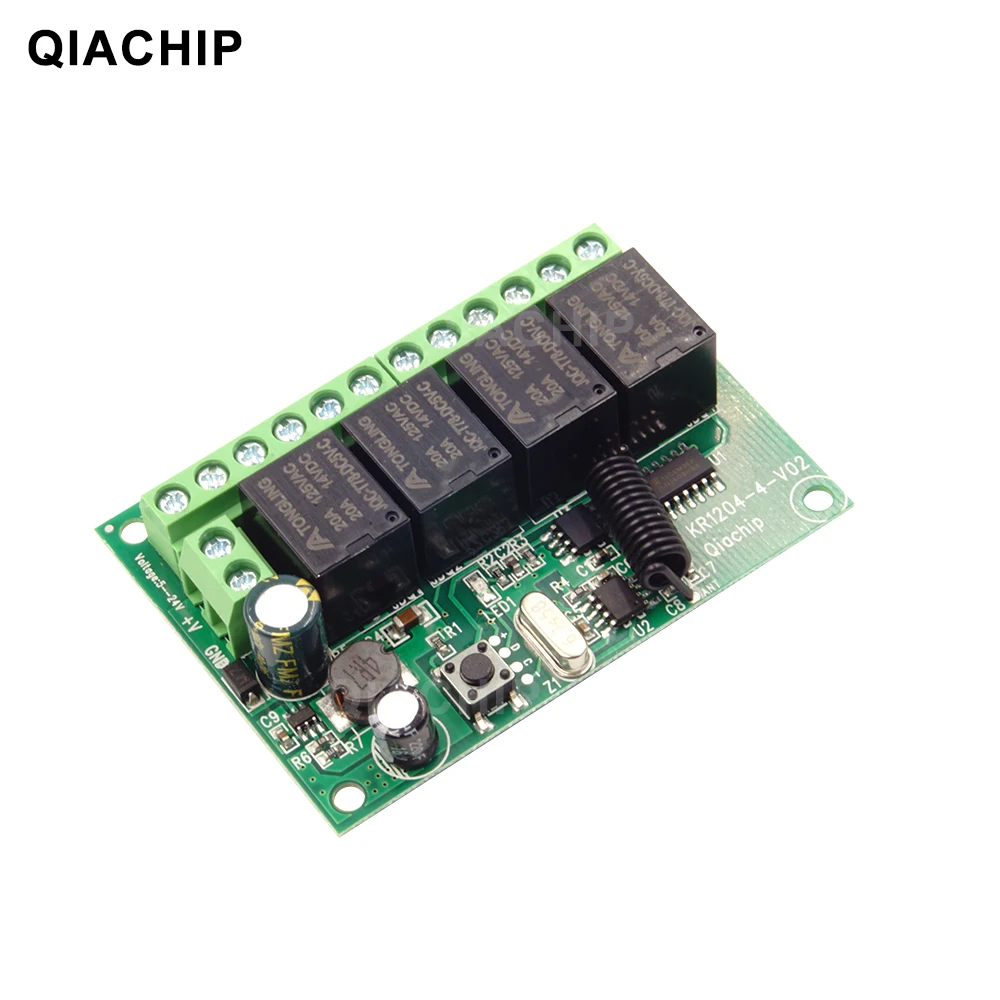

Technical Data Of Receiver:

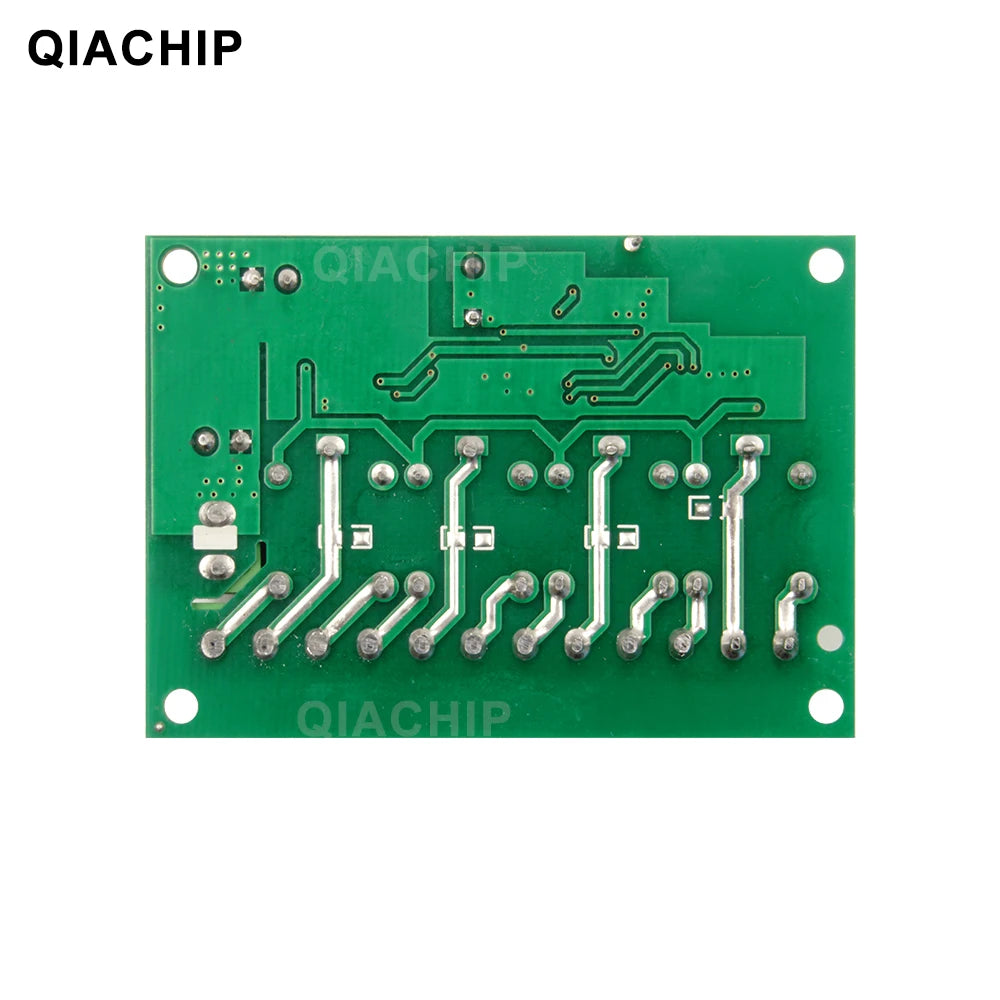

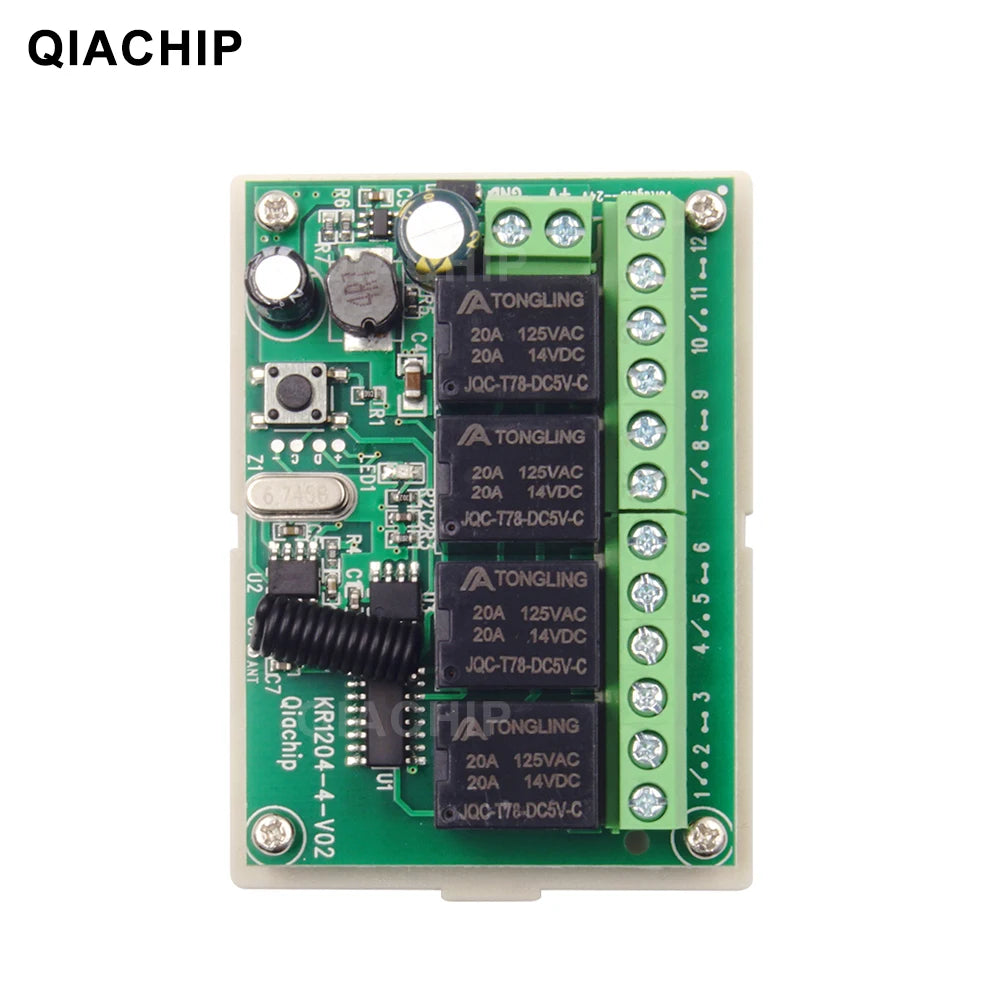

Model Number:KR1204B-4
Input voltage: DC 6-30V
Working current: ≤10A
Quiescent Current:5mA
Frequency: 433Mhz
Output Current: ≤10A
Receiving Sensitivity: >104dbm
Support encoding format: EV1527
Wiring method: NC COM NO
Working mode: Momentary, Toggle, Latching Time delay

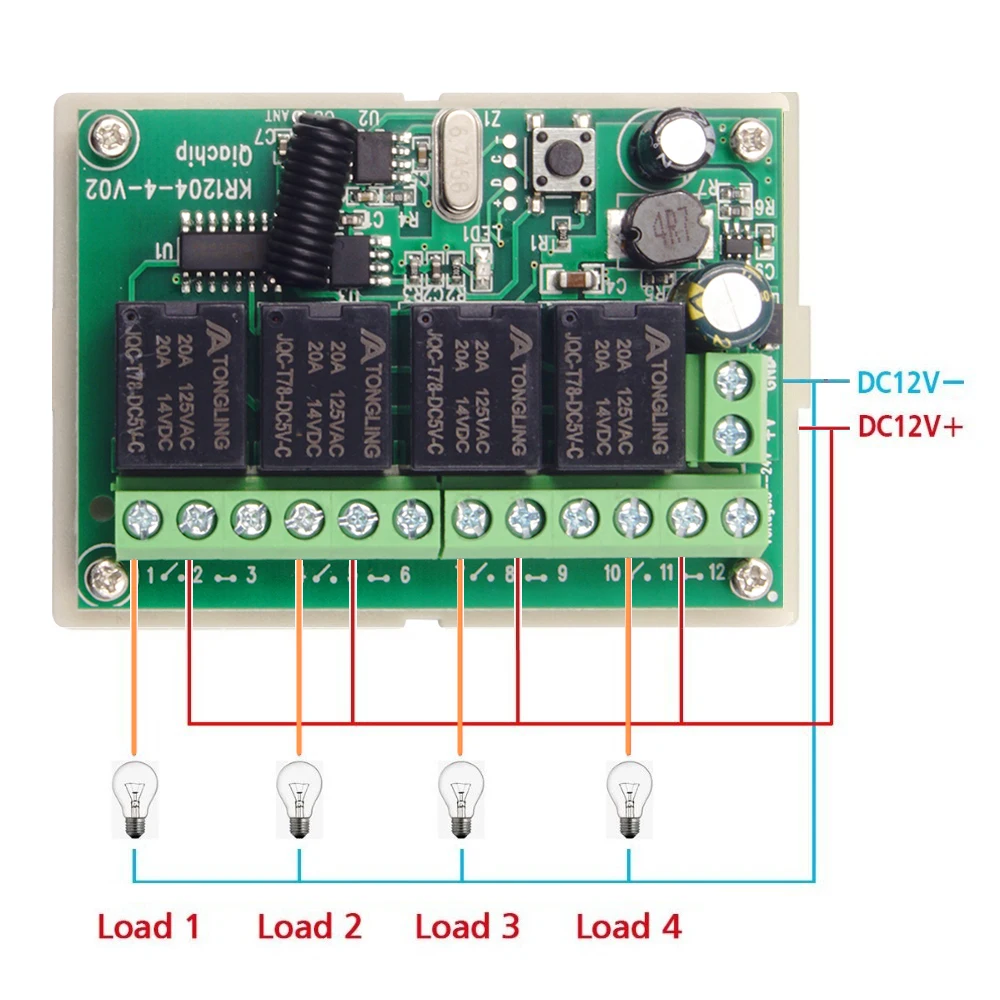

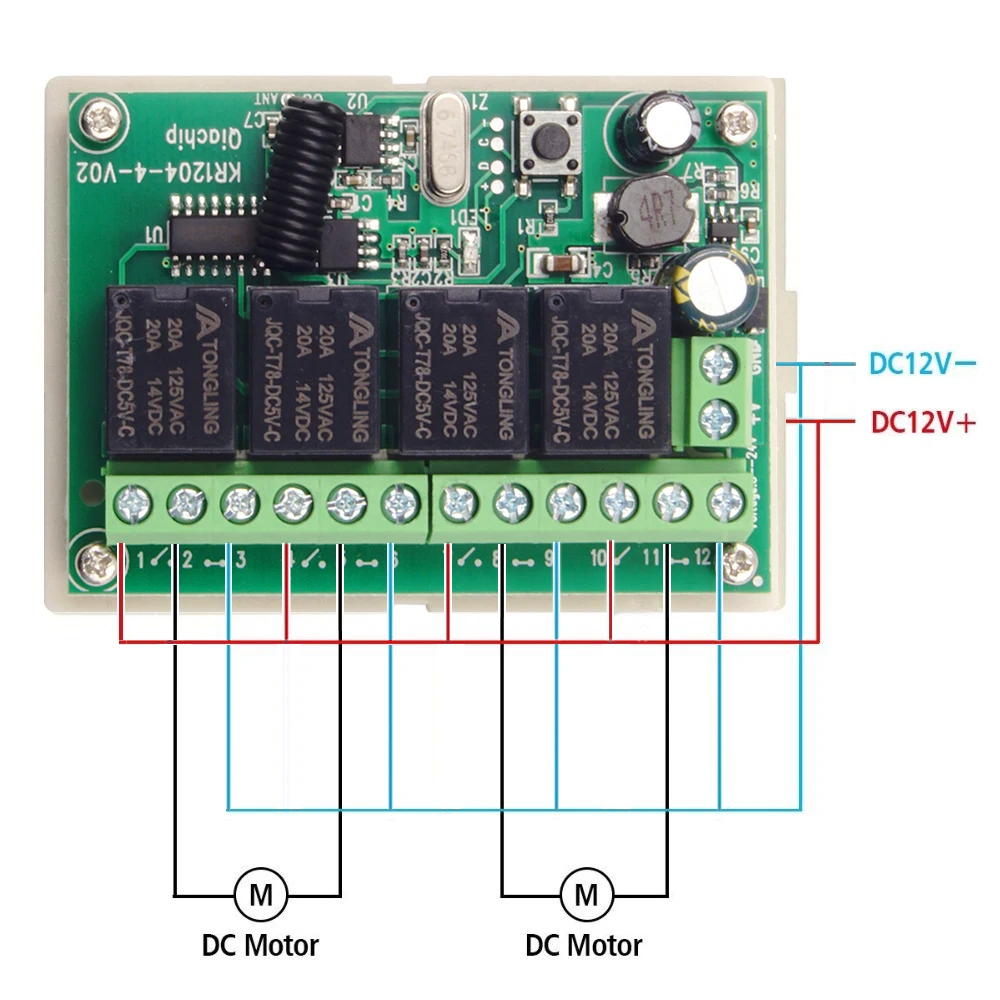

Wiring instructions:
1, +: Connect to the positive 12V power supply
2. - : Connect to the negative electrode of 12V power supply
3, A: output; normally open end of the relay
4, B: output; relay common;
5, C: output; normally closed relay

Notice: Different options include different packages

Package List 1:
1* KT19-4 433Mhz Remote Control (include Battery)

Package List 2:

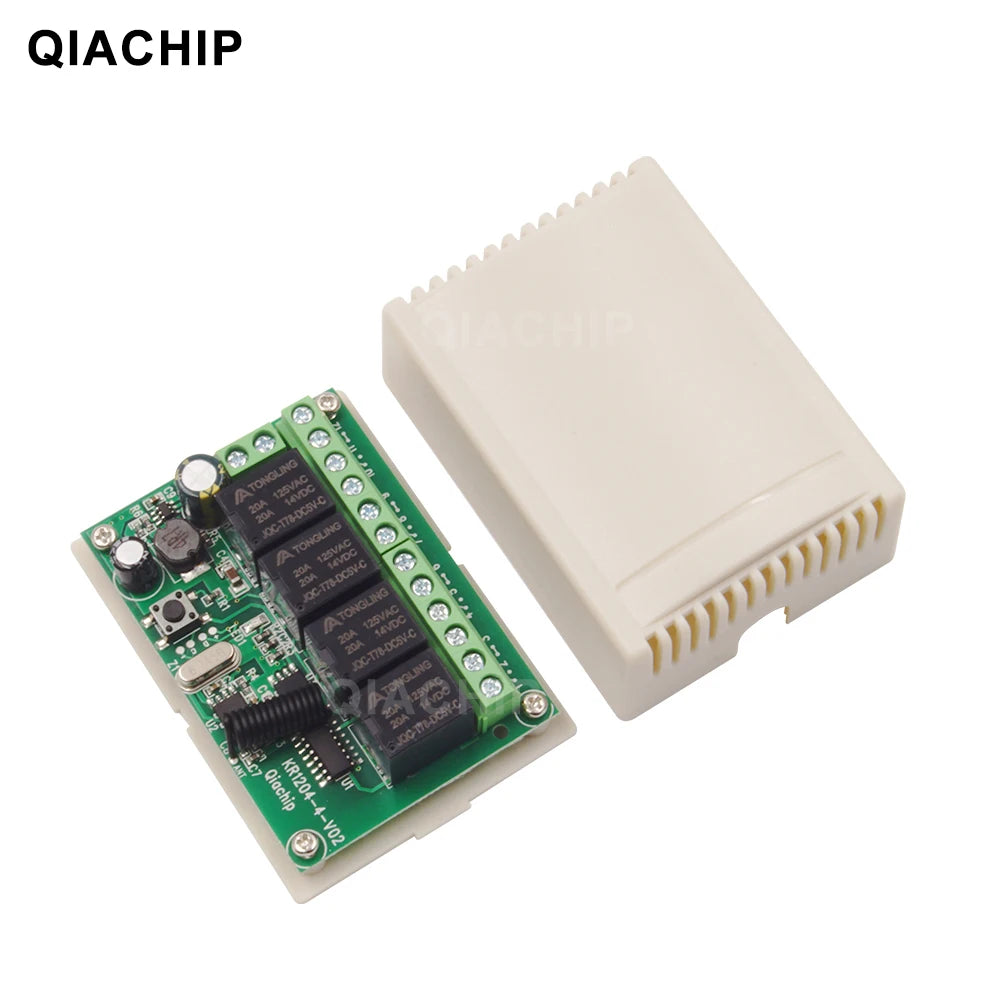

1* KR1204B-4 Receiver Module (Include Shell)

Package List 3:

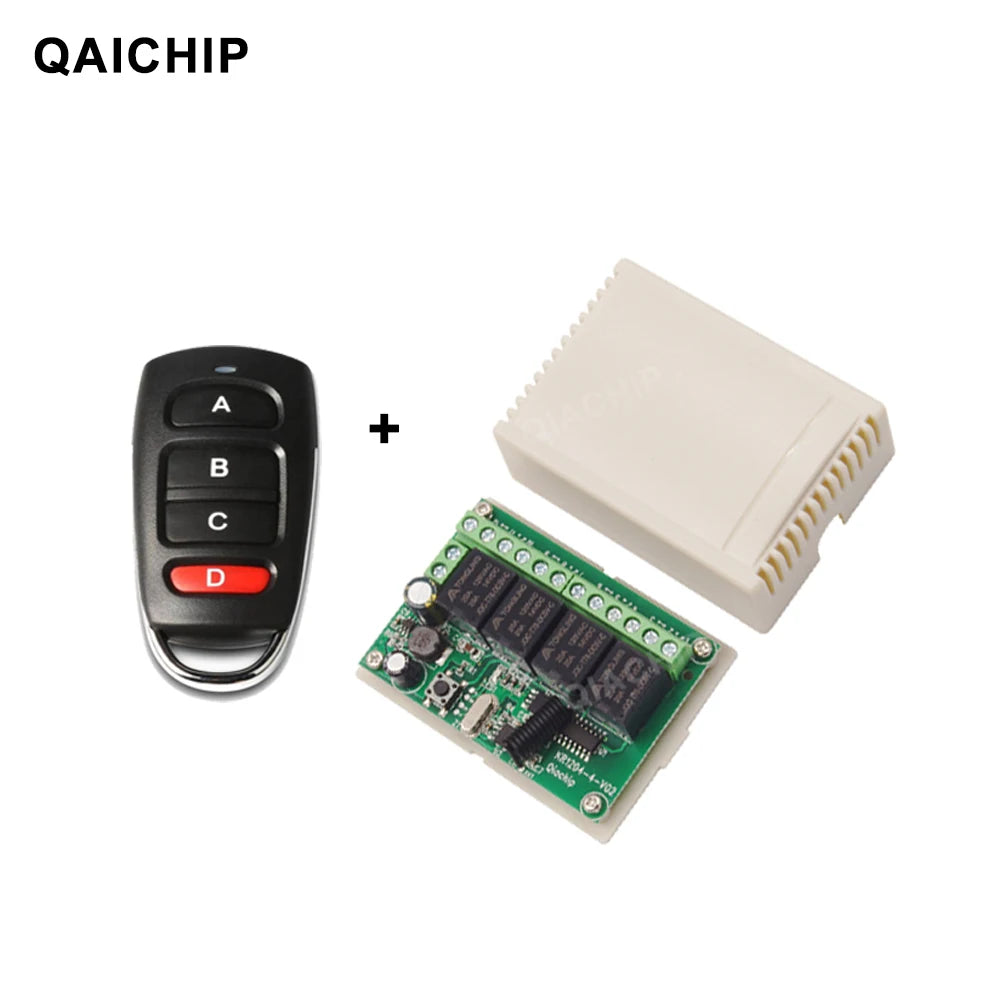

1* KT19-4 433Mhz Remote Control (include Battery)
1* KR1204B-4 Receiver Module (Include Shell)

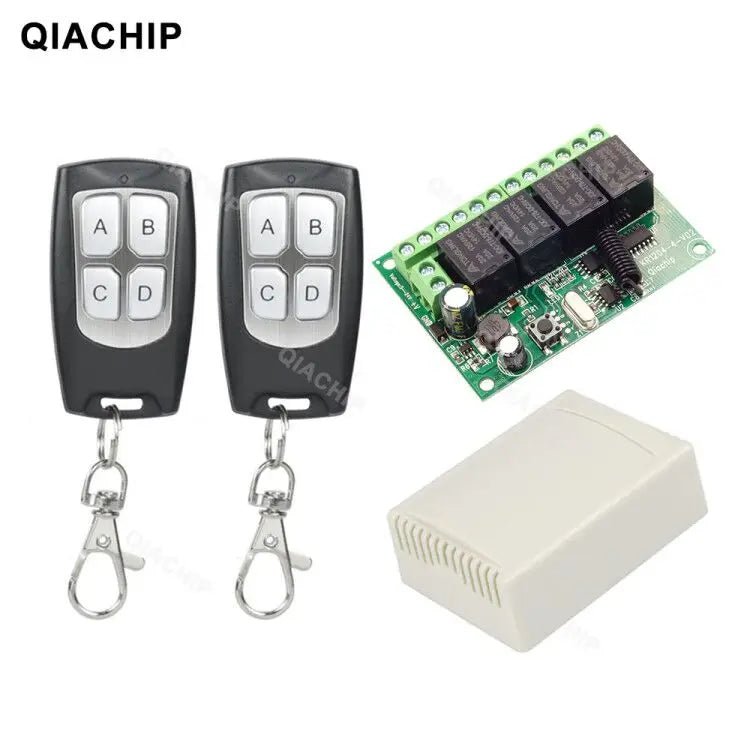

Package List 4:
2* KT19-4 433Mhz Remote Control (include Battery)
1* KR1204B-4 Receiver Module (Include Shell)

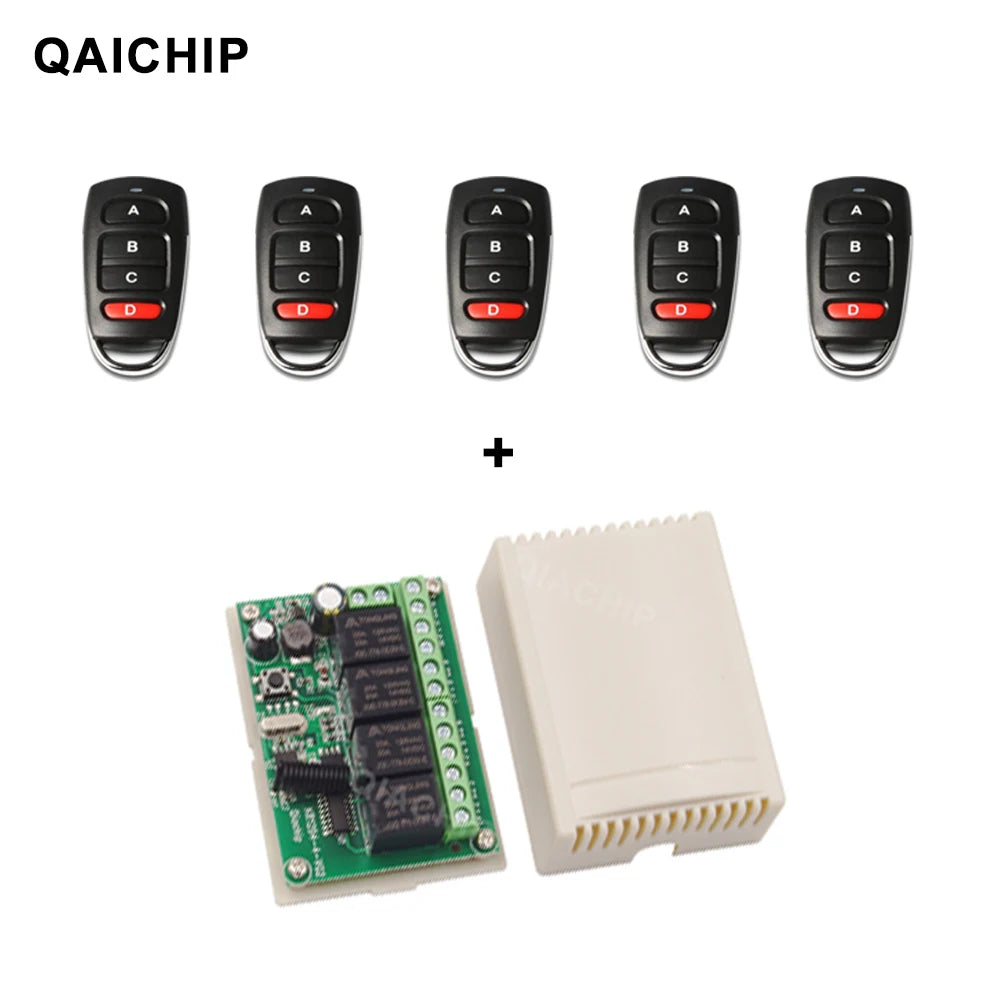

Package List 5:
5* KT19-4 433Mhz Remote Control (include Battery)
1* KR1204B-4 Receiver Module (Include Shell)

About Working mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

Learning the Code:(Momentary)

Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code: (Toggle)

Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code:( Latching)

Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF.
