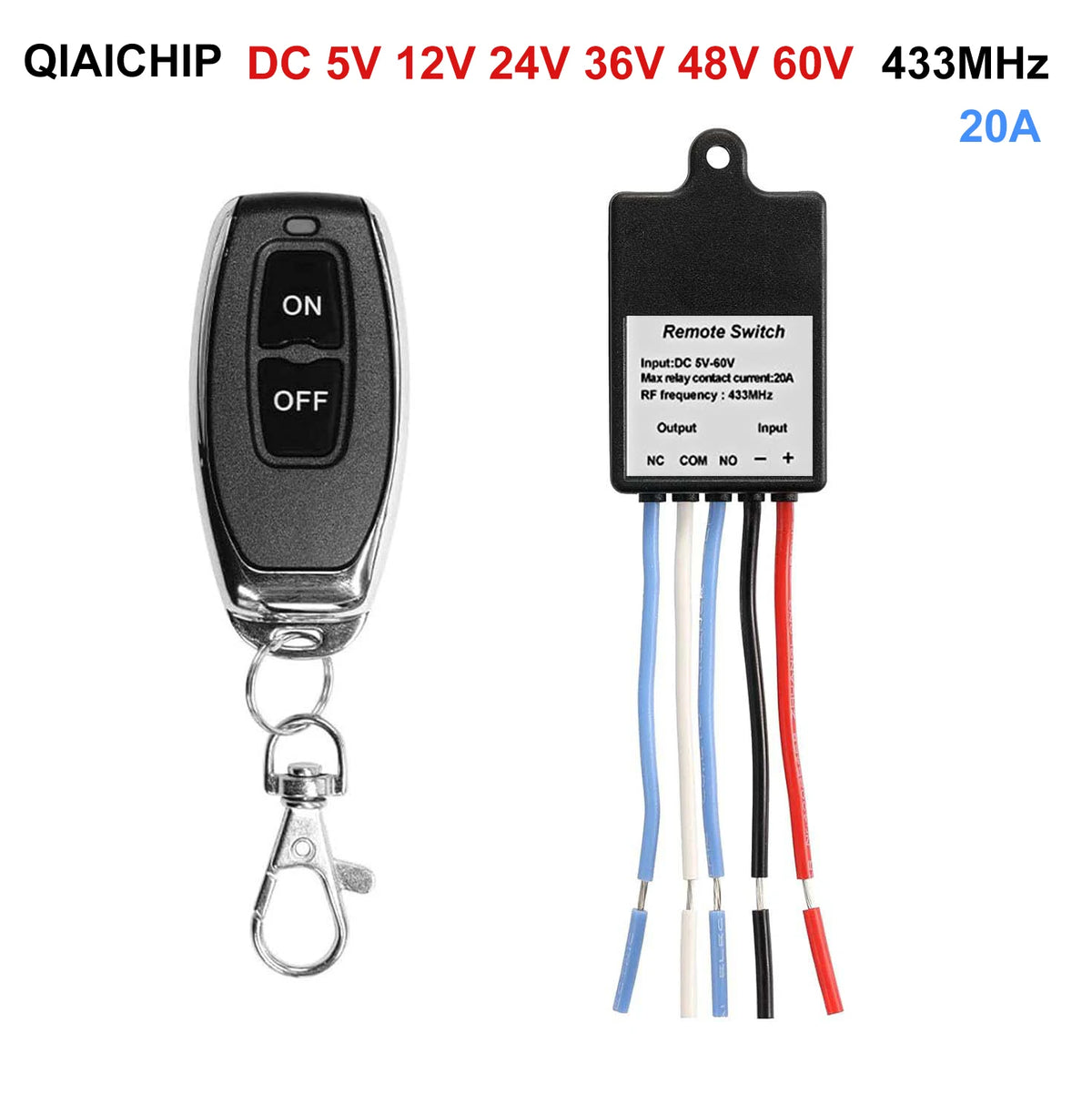

433MHz Wireless Remote Control Switch Relay DC 5V-60V Transmitter Remote Control Dry Contact Relay Gate Door Light Controls

$37.99 $51.99

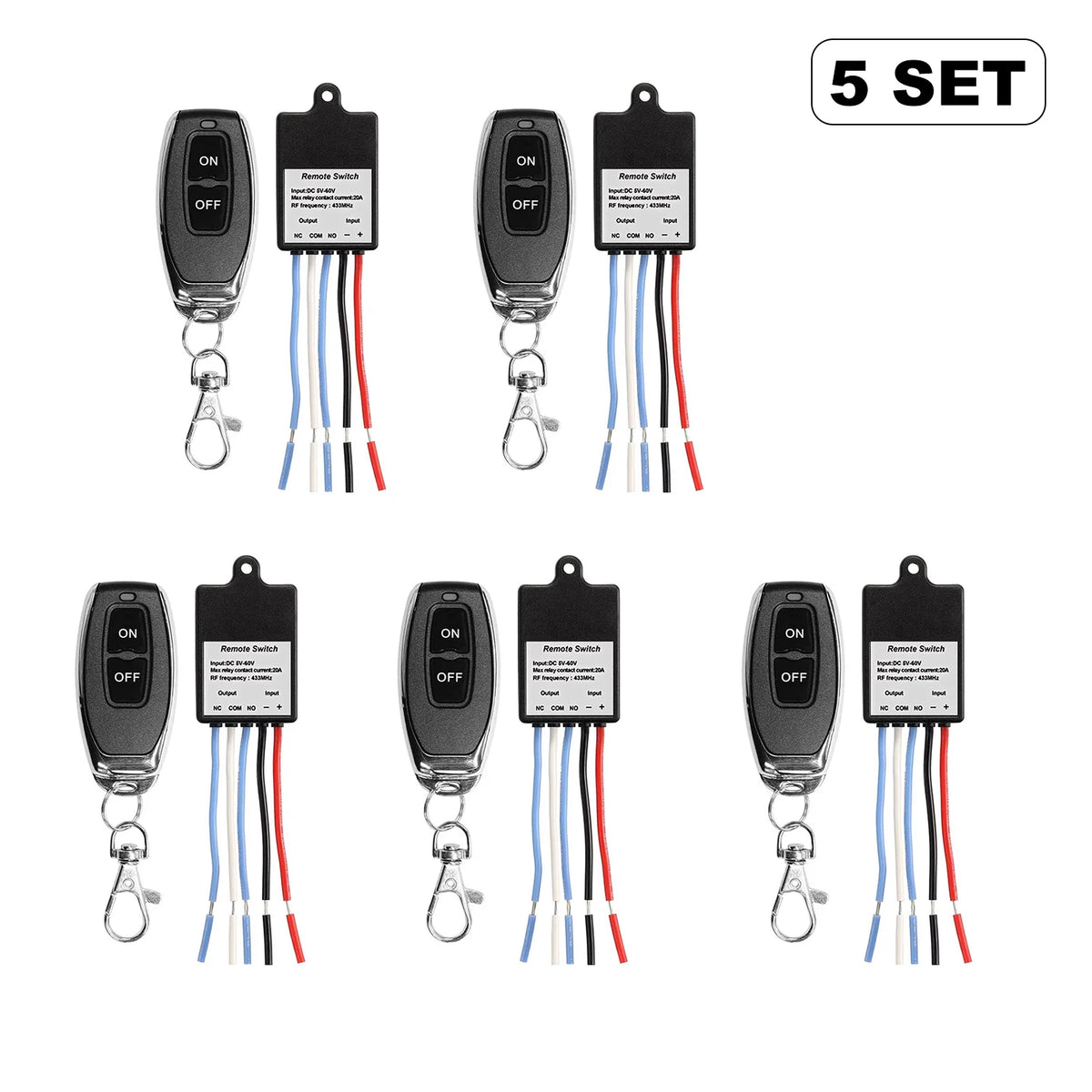

Color 1set 10set 1pcs 5set 2set

Instructions

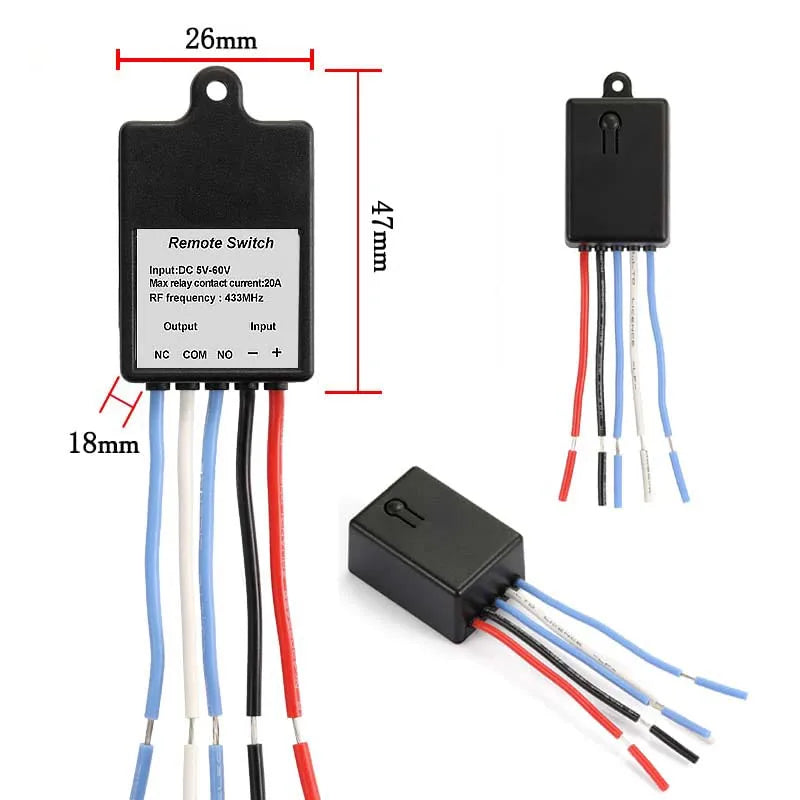

Receiver

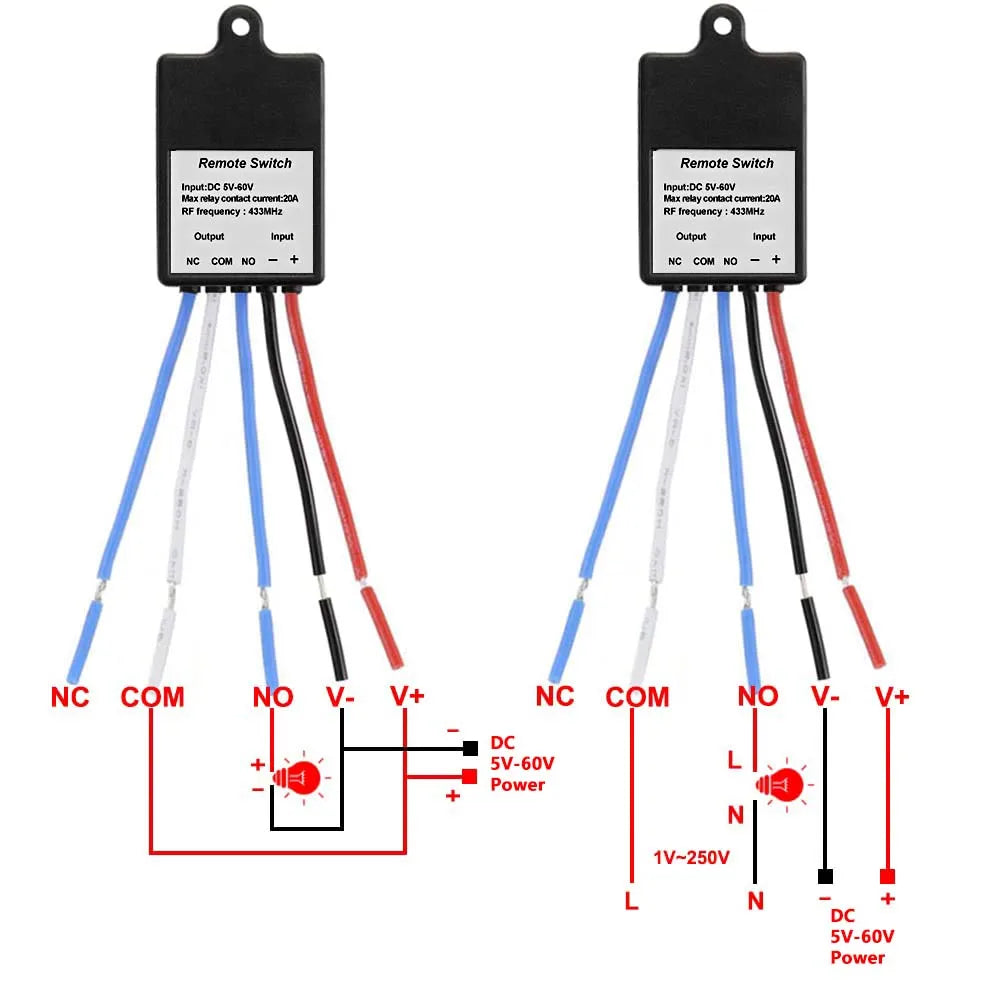

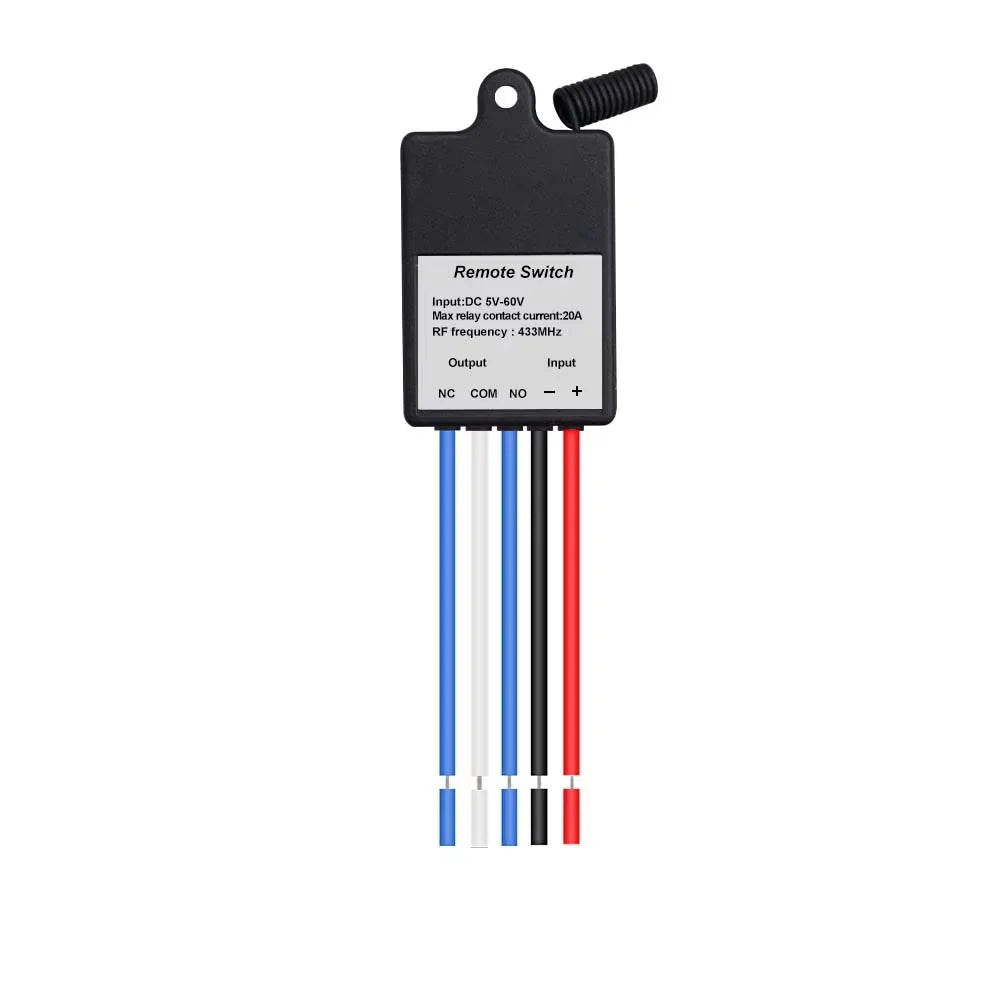

Description of receiver output terminal status

Power-on of the output terminal: NO end and COM end are closed, NC end and COM end are opened

Power-off of the output terminal: NC end and COM end are closed, NO end and COM end are opened

1. Toggle mode pairing instructions

Toggle mode: The same button of the remote control can control the power-on and power-off of the output terminal of the receiver. Press once to power on the output terminal of the receiver, and press it again to power off the output terminal of the receiver.

Setting method: Press the receiver button twice continuously, the receiver indicator light is always on, the receiver enters the code matching state, and then press the button of the remote control, the indicator light goes out after the code is successfully coded.

2. Latching mode pairing instructions

Latching mode: The two buttons of the remote control respectively control the power-on and power-off of the output terminal of the receiver. One button can only control the power-on of the output terminal of the receiver, and the other button can only control the power-off of the output terminal of the receiver.

Setting method: press the receiver button 3 times, the receiver indicator light is always on, the receiver enters the code matching state, and then press the remote control button, the receiver indicator light flashes and then stays on, then press another button on the remote control, after the code is successful, the indicator light goes out.

3. Momentary mode pairing instructions

Press and hold a button of the remote control to power on the output of the receiver, and release it to power off the output of the receiver.

Setting method: Press the receiver button once, the receiver indicator light is always on, the receiver enters the code matching state, and then press the button of the remote control, then indicator light goes out after the code is successfully coded.

4. Delay mode pairing instructions

Delay mode: press the receiver button , the output terminal of the receiver will be powered on for a certain time (5s/10s/15s/20s), and the output terminal of the receiver will be powered off. Setting method: press a certain number of times (4 times correspond to 5s/ 5 times correspond to 10s/ 6 times correspond to 15s/ 7 times correspond to 20s) to press the receiver button, the receiver indicator light is always on, the receiver enters the code matching state, then press the key of the remote controller, and the indicator light will go out after the code matching is successful.

5. Reset settings

After pressing the receiver button 8 times, the indicator light flashes, the output of the receiver is powered off, and all the remote control data in its memory is cleared at the same time. After the power is restored, the output of the receiver is directly powered off.

Notes

1. Do not wire with power, turn off the power to wire, and power on after the test is confirmed to be correct.

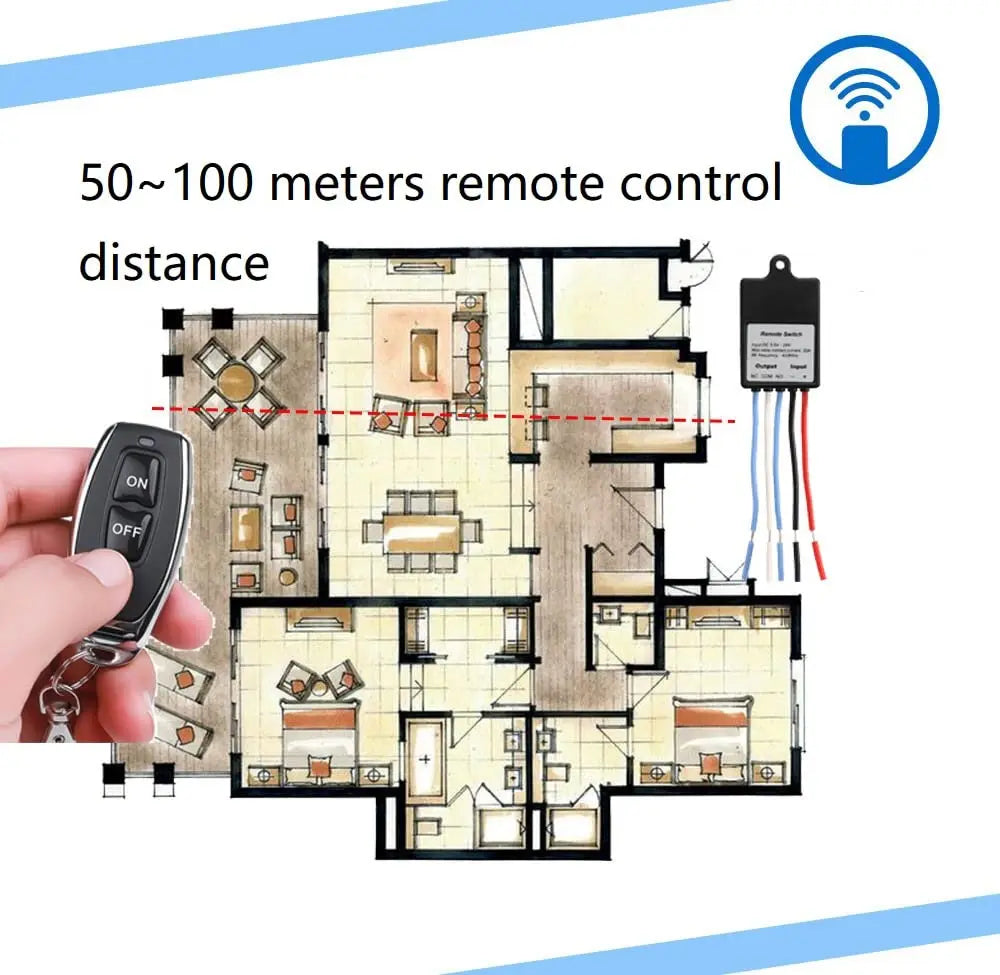

2. When the remote voltage is low, please replace the battery in time (when the remote battery voltage is low, the remote distance will generally become shorter).

3. When using wireless electronic products, pay attention to avoiding metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, and avoid the short distance between the remote control and the reception or even the failure of normal operation.

4. The remote control should be our company's RF433 series, for other remote controls, please consult relevant personnel. Product parameters

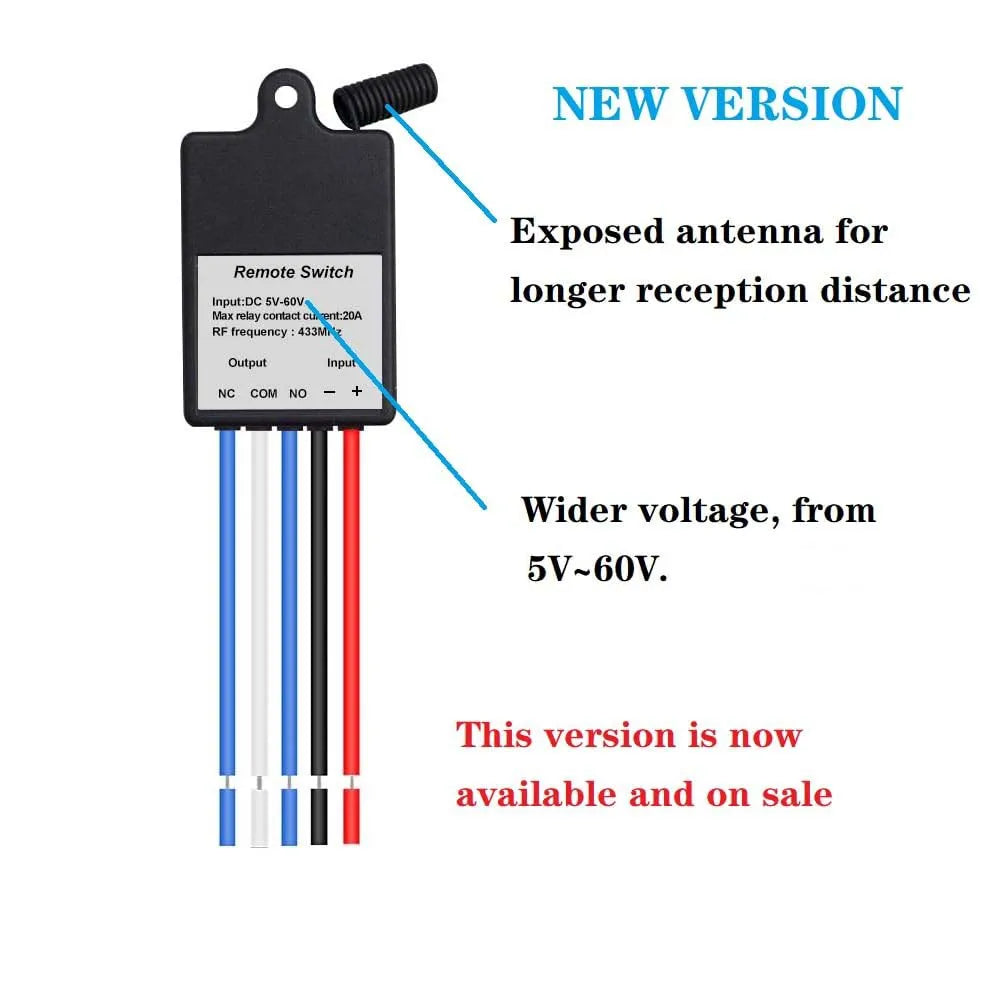

1. Working voltage: DC 5V-60V

2. Maximum relay contact current: 20A

3. Frequency: 433MHz

4. Control method: remote
