433mhz Wireless Remote Control Switch 220V 2CH Relay Receiver and Controller for Led Roller Blinds Shutters Projector Screen

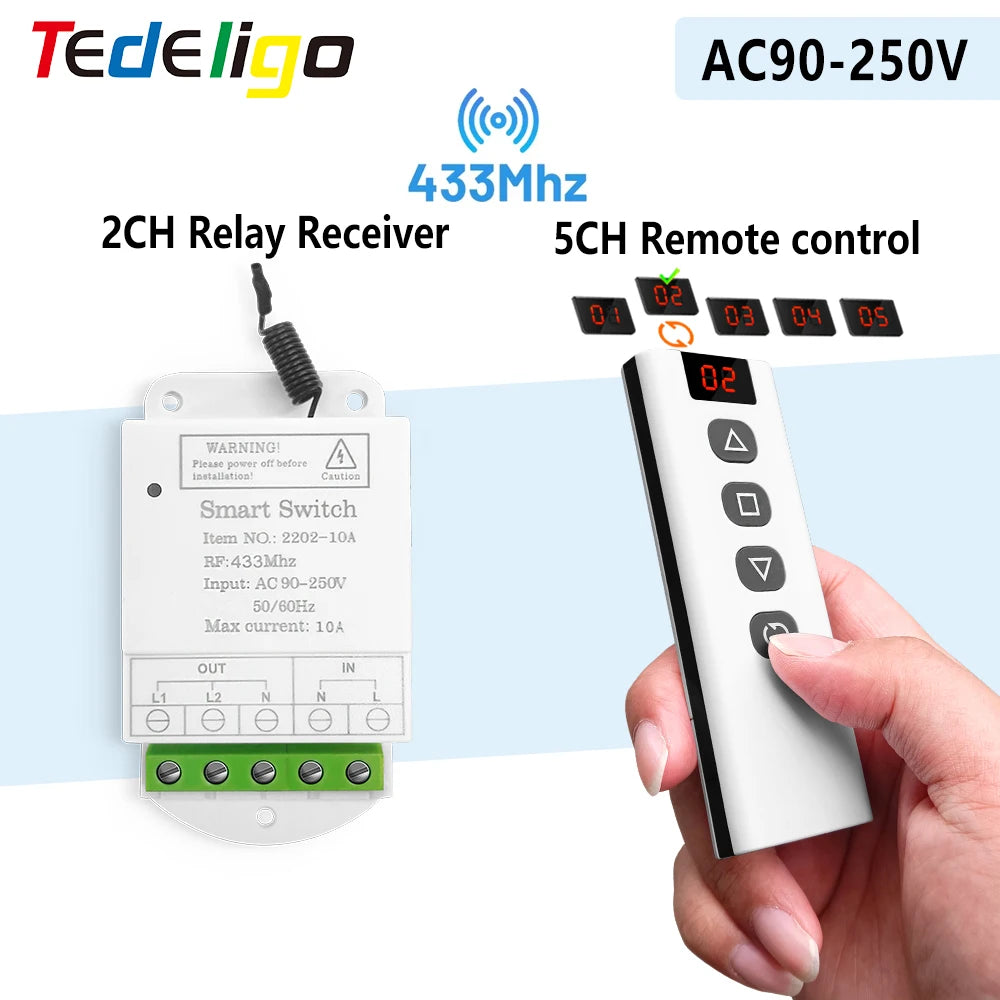

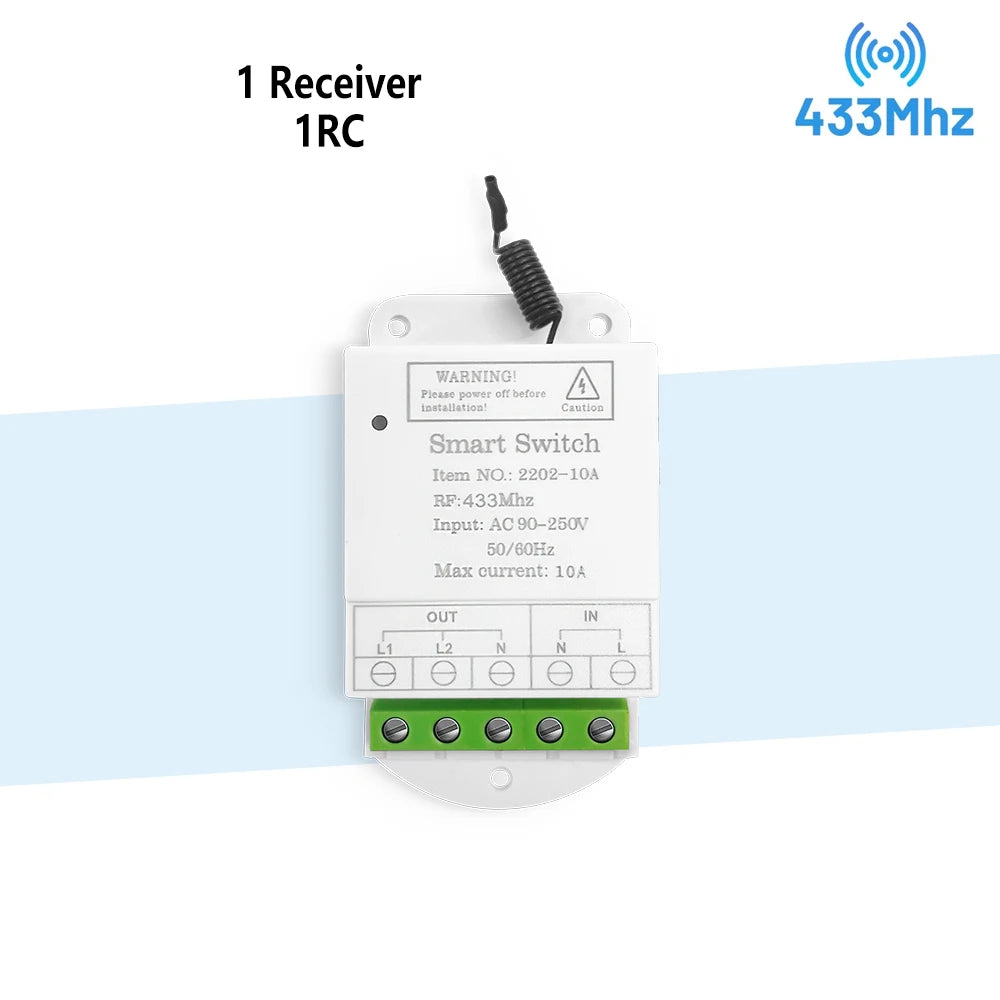

2ch relay receiver parameter

Input voltage:  AC90-250V 50/60MHz
Max Load : 10A
RF Frequency:433.92Mhz

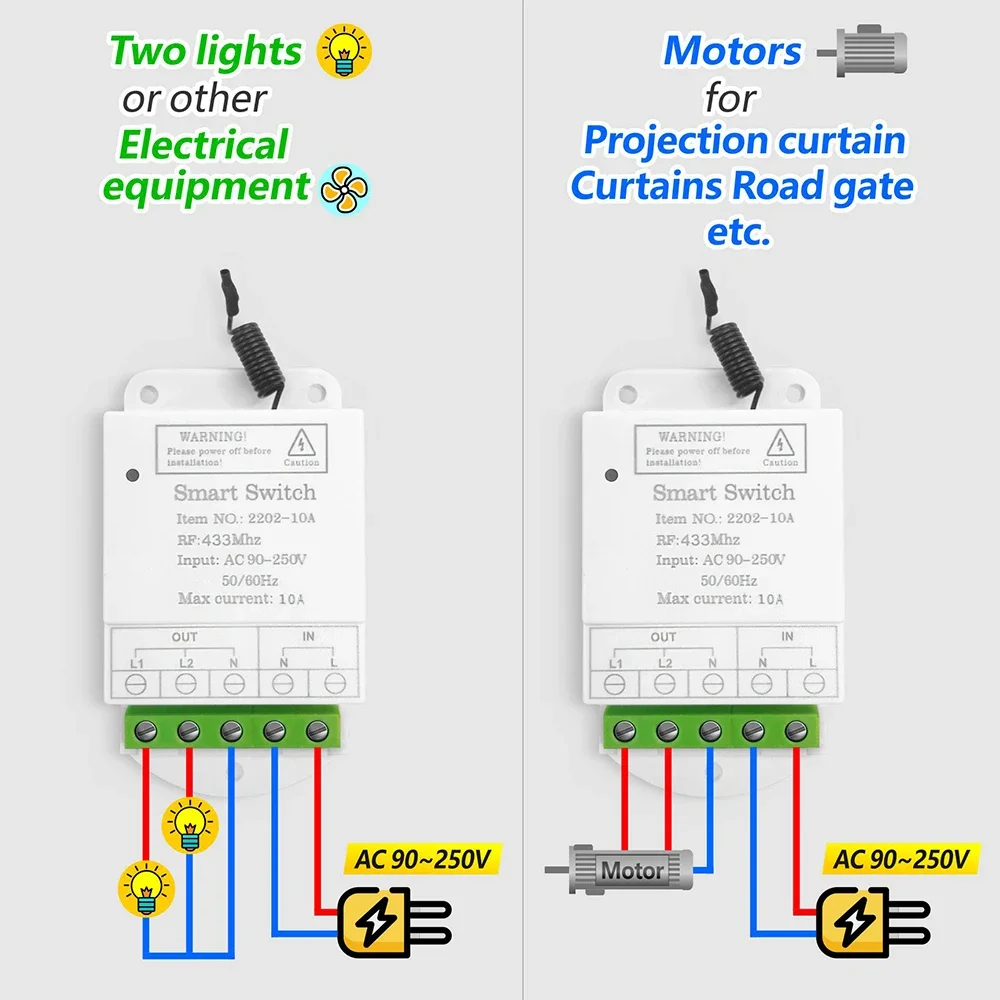

Wiring:  output-L1/L2/N;input-N/L
Standby Consumption: below 0.5W
Certification: CE, EMC, RED, RoHS
Size :   85mm*43mm*30mm

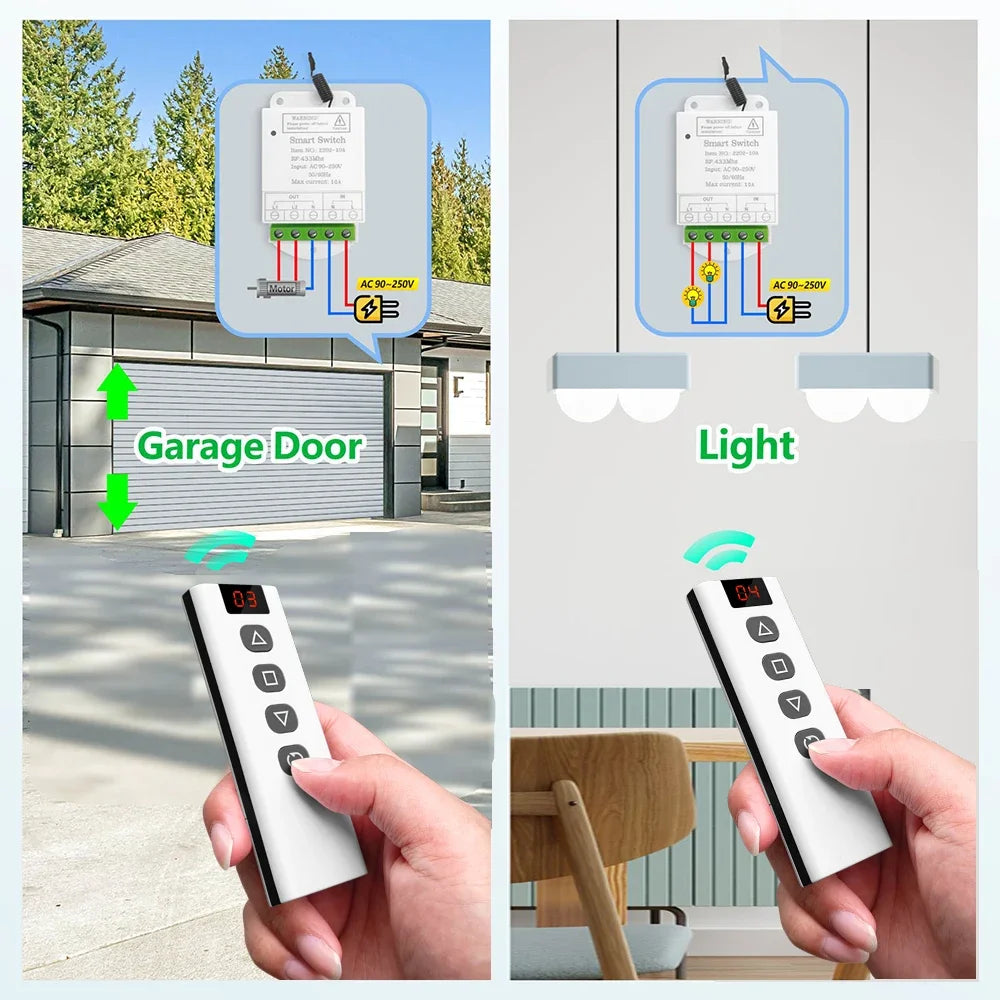

Wide application: Garage Door/Crane/Motor/lamp/Curtain/Water pumps/Irrigation of agricultural land.

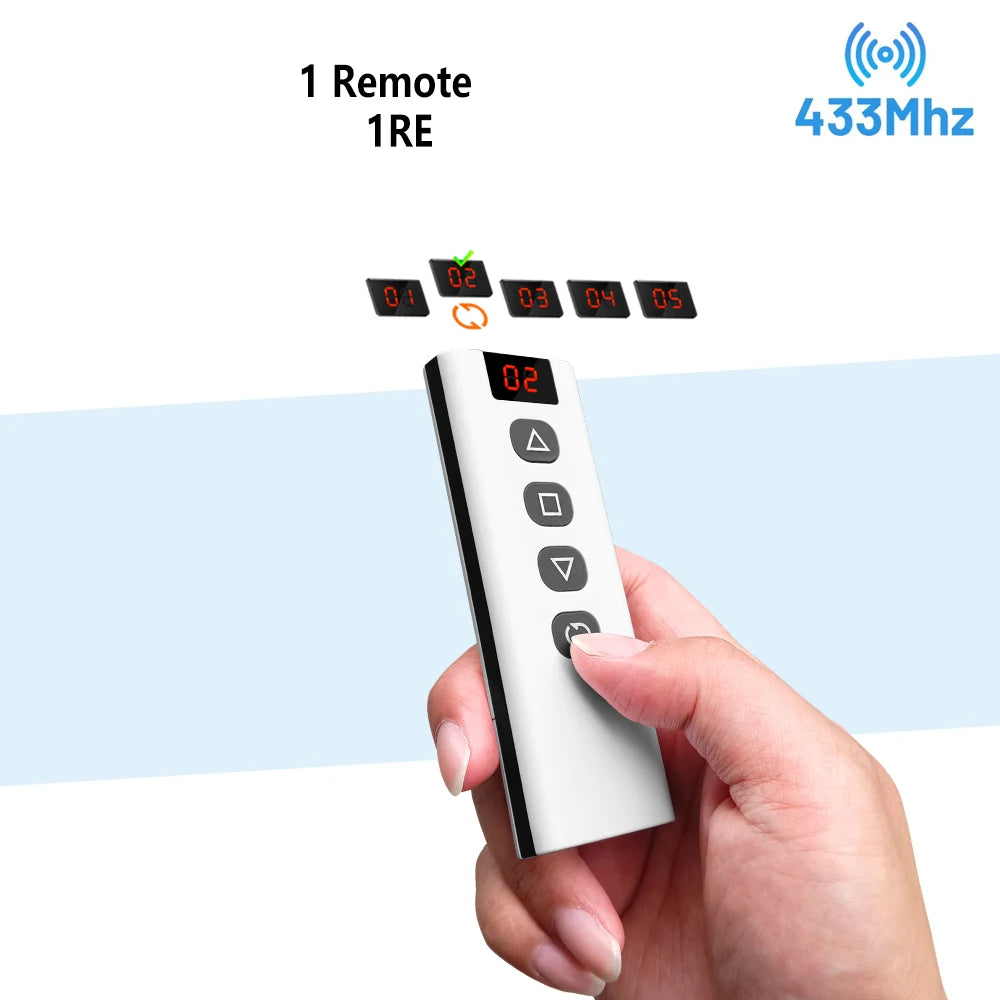

5CH Remote Control
Product type:Remote control
RF Frequency:433.92Mhz
Battery:23A 12V
Size:110mm*38mm*15mm
Remote control distance:50m(in the open area)
Base:include

Simple connection

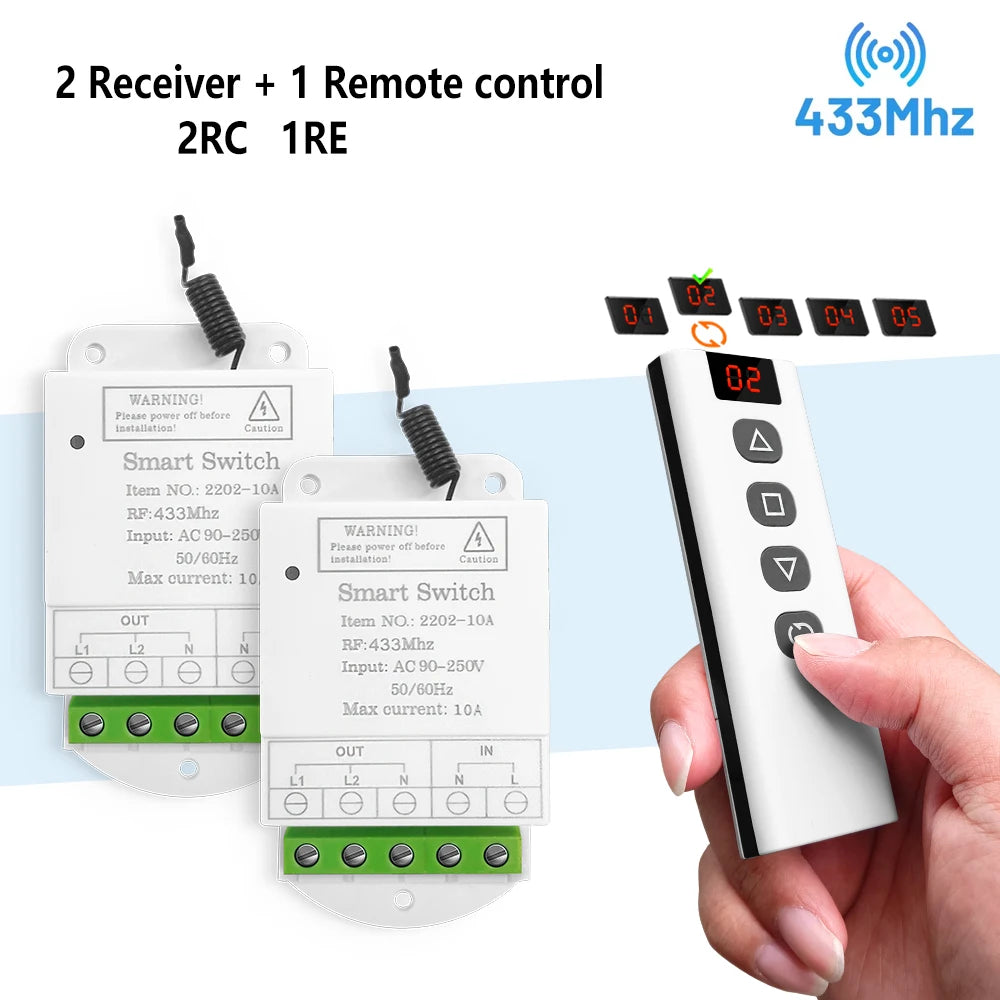

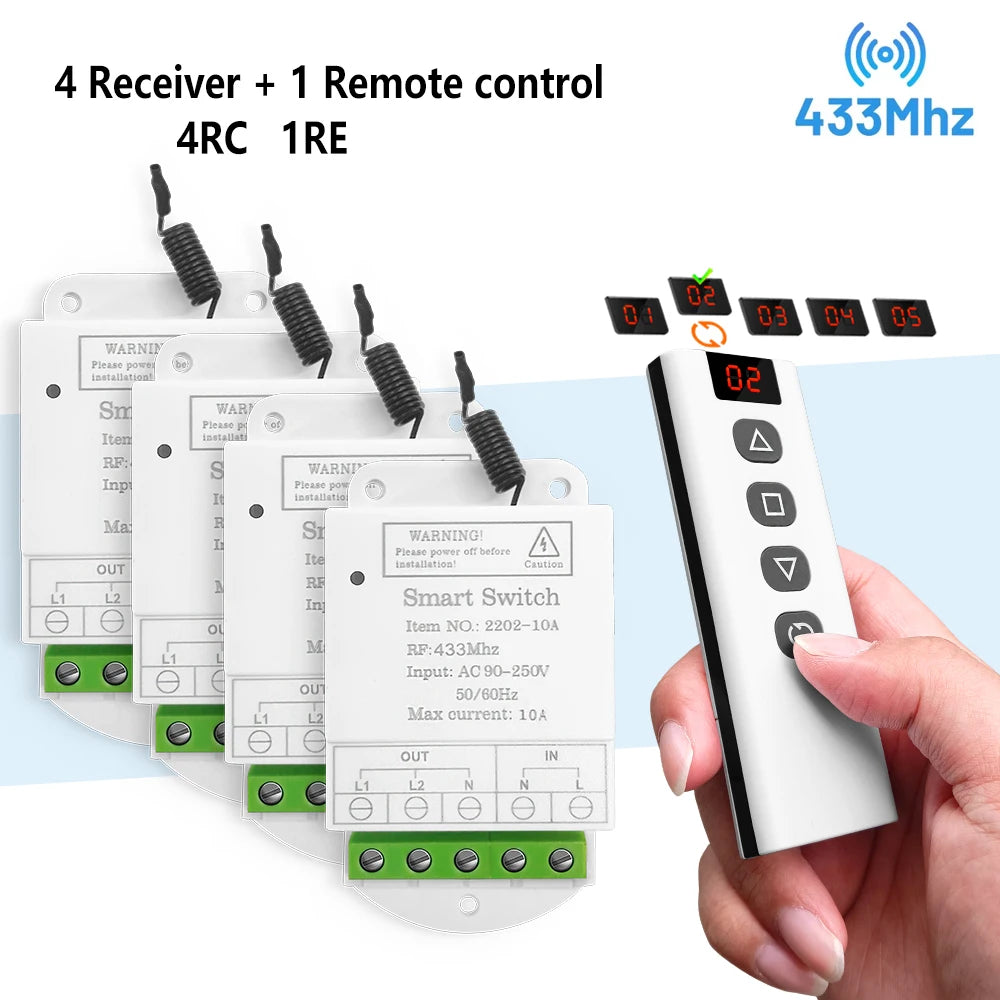

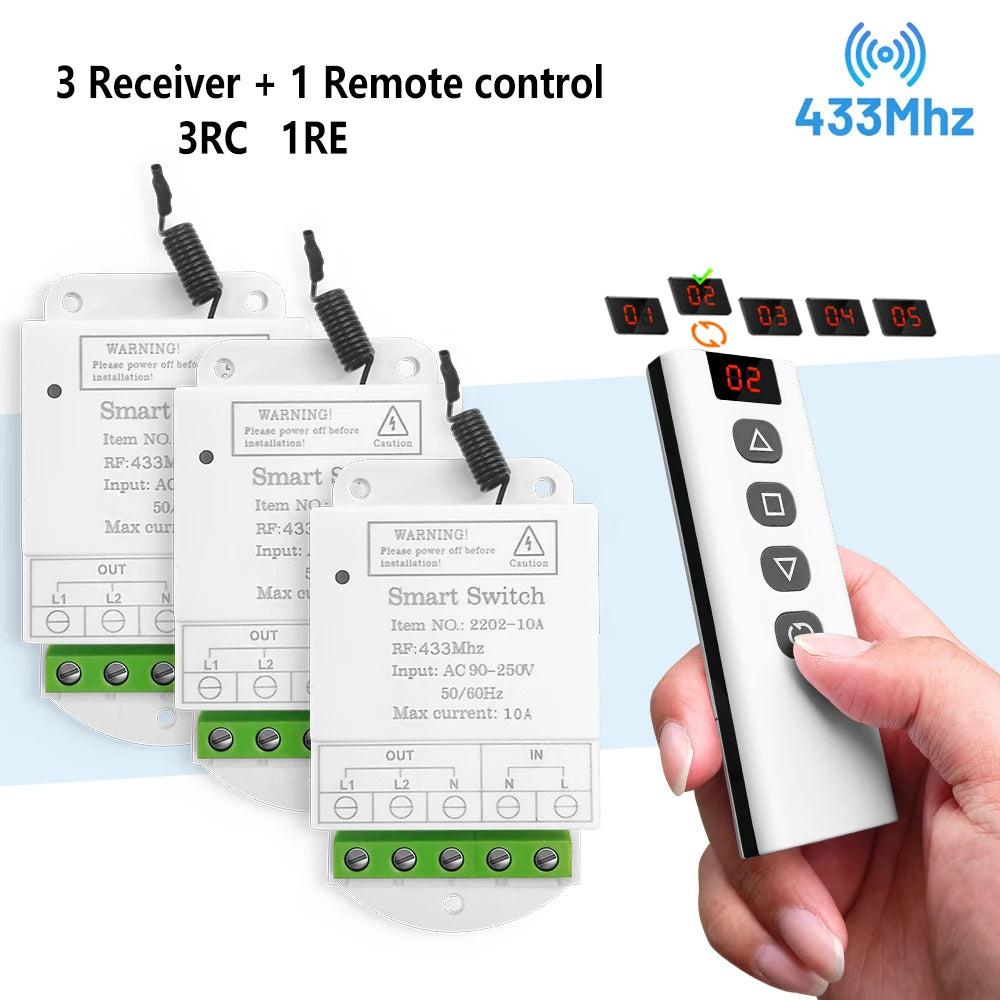

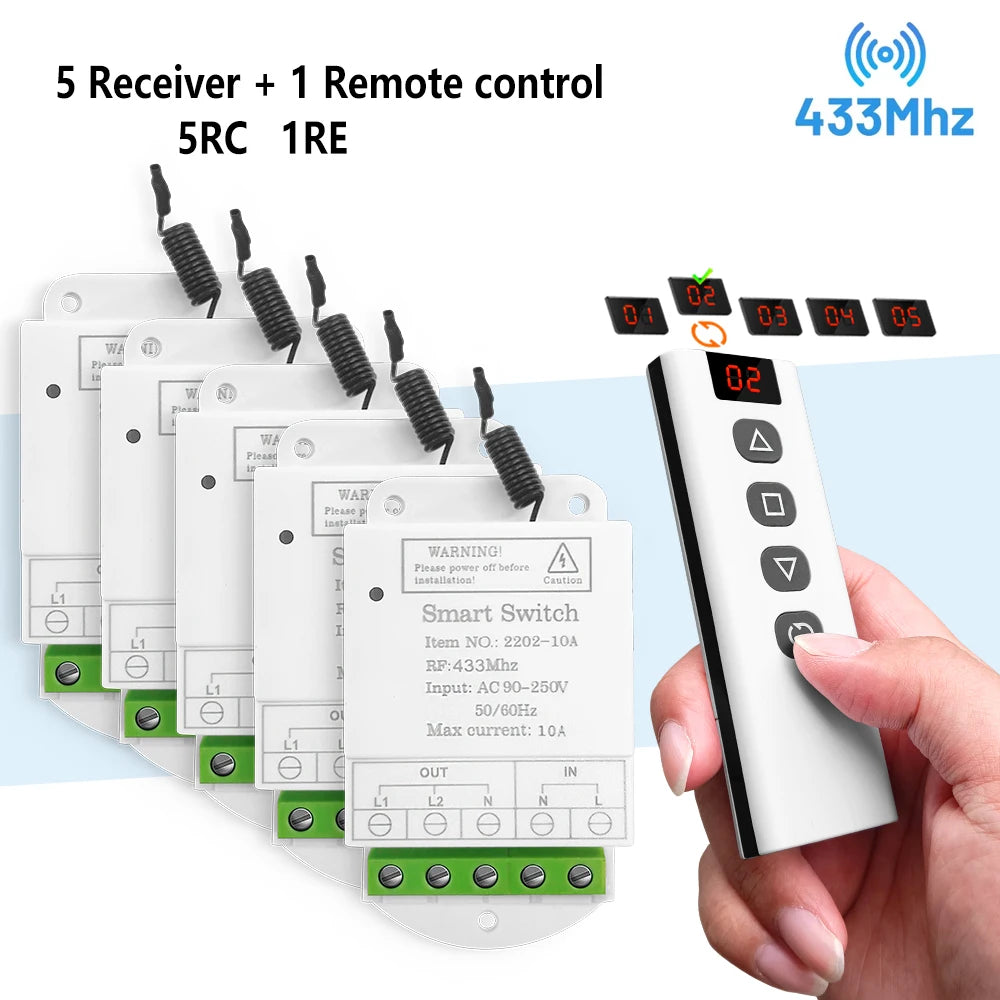

Realize one remote control to control multiple receivers

Wide range of uses

Stable signal, can be controlled from a distance

Multiple control modes

433MHZ wireless switchsignals

How to get the signals
--- Toggle Mode:
1. Press the learning button (on the receiver) 2 times. The indicator LED on the receiver will light up;
2. Press button "▲" on the remote control. The indicator LED on the receiver will flashing several times and then light down;
3. Press button "▼" on the remote control. The indicator LED on the receiver will flashing several times and then light down. Succeed.

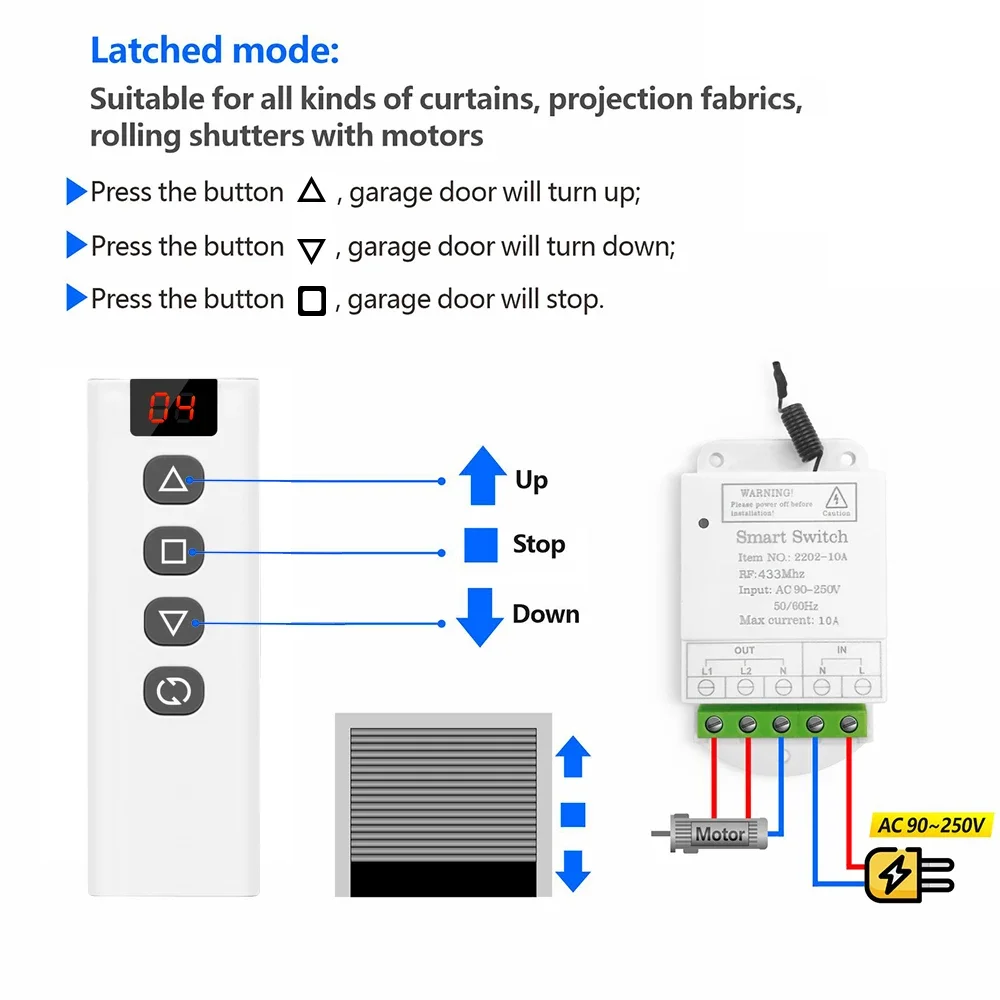

--- Latched mode
1. Press the learning button (on the receiver) 3 times. The indicator LED on the receiver will light up;
2. Press button "▲" on the remote control. The indicator LED on the receiver will flashing several times and then light down;
3. Press button "▼" on the remote control. The indicator LED on the receiver will flashing several times and then light down.

4.Press button "■" on the remote control. The indicator LED on the receiver will flashing several times and then light down. Succeed.

How to clear the signals
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
